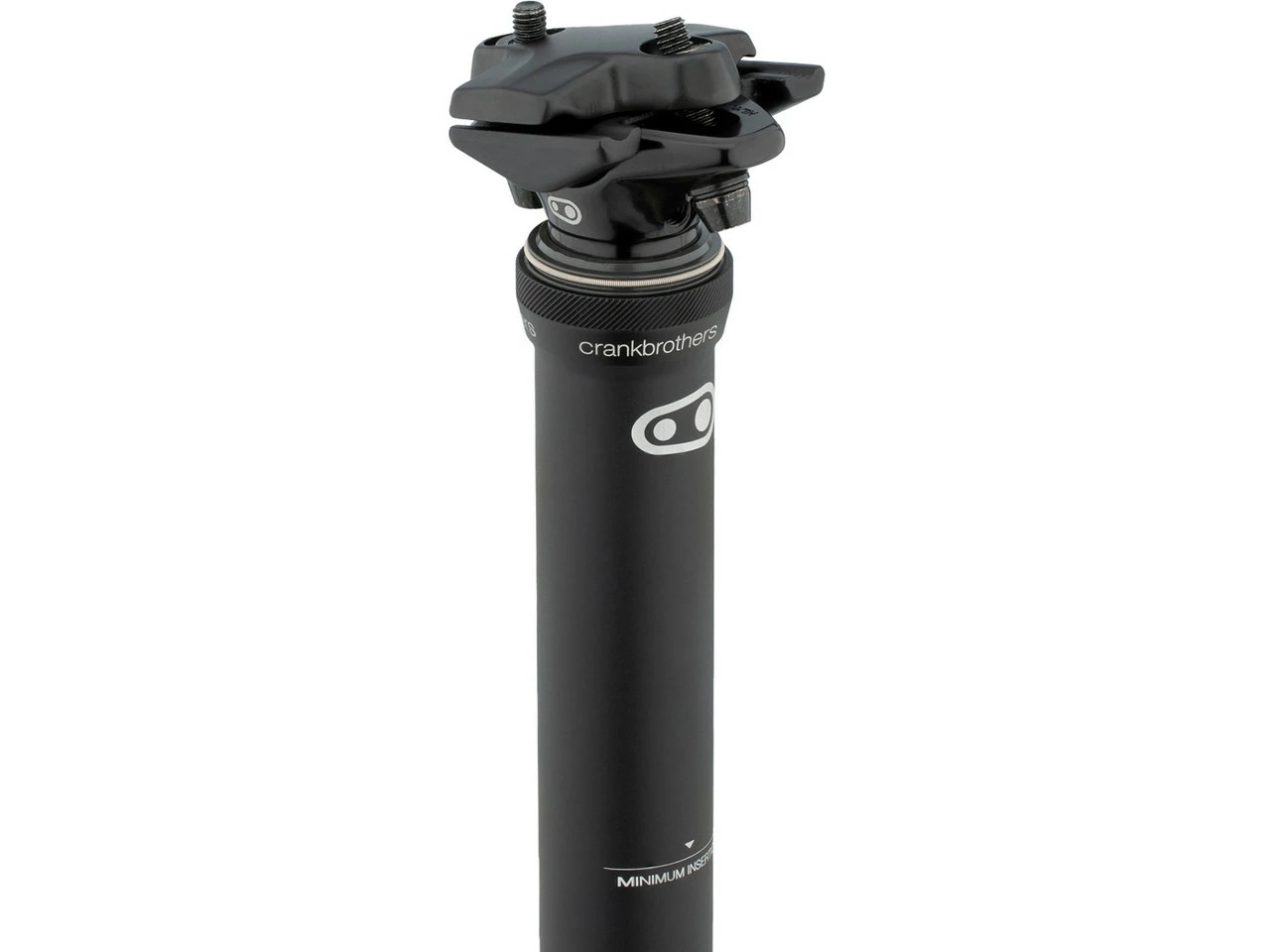

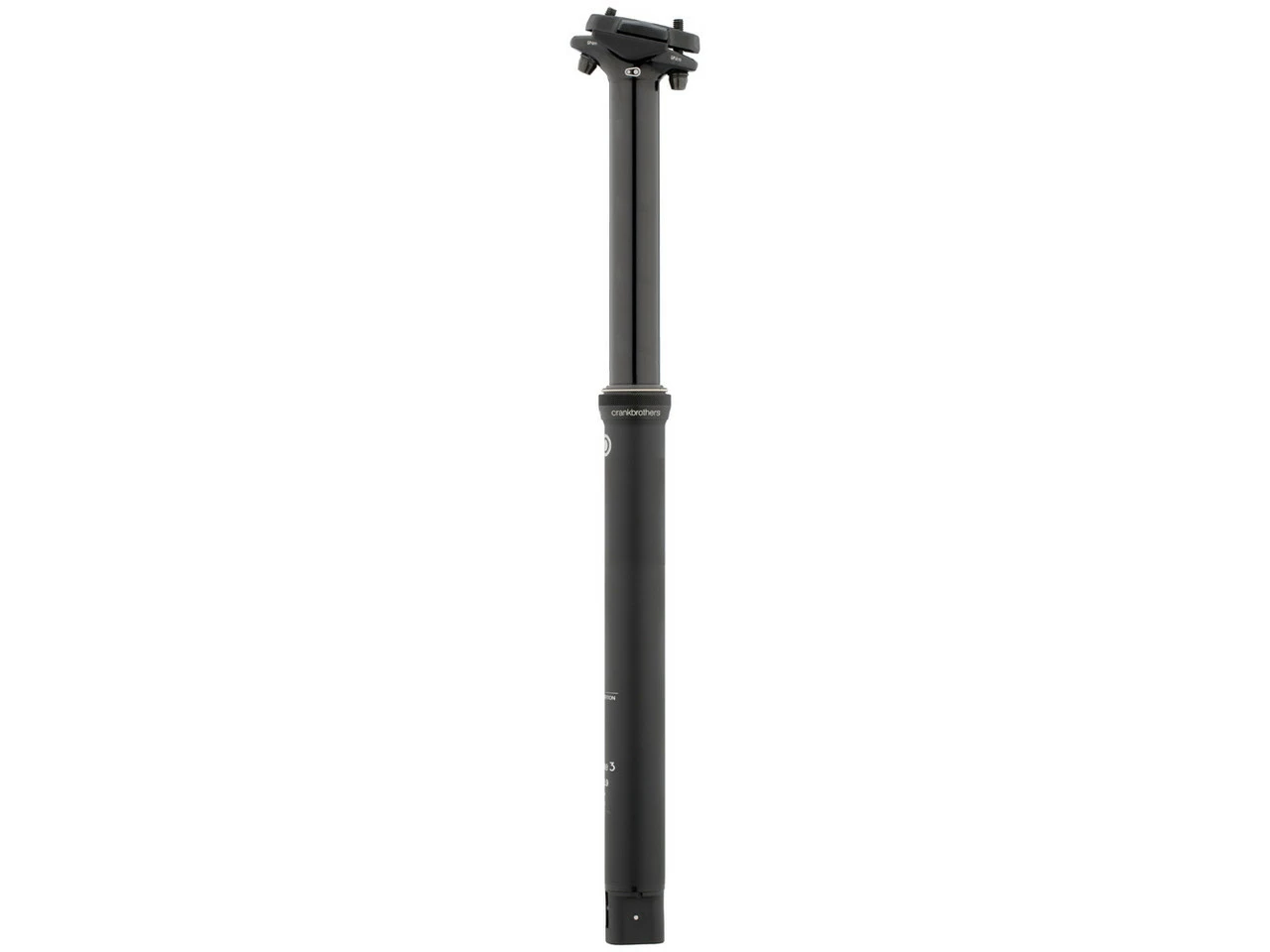

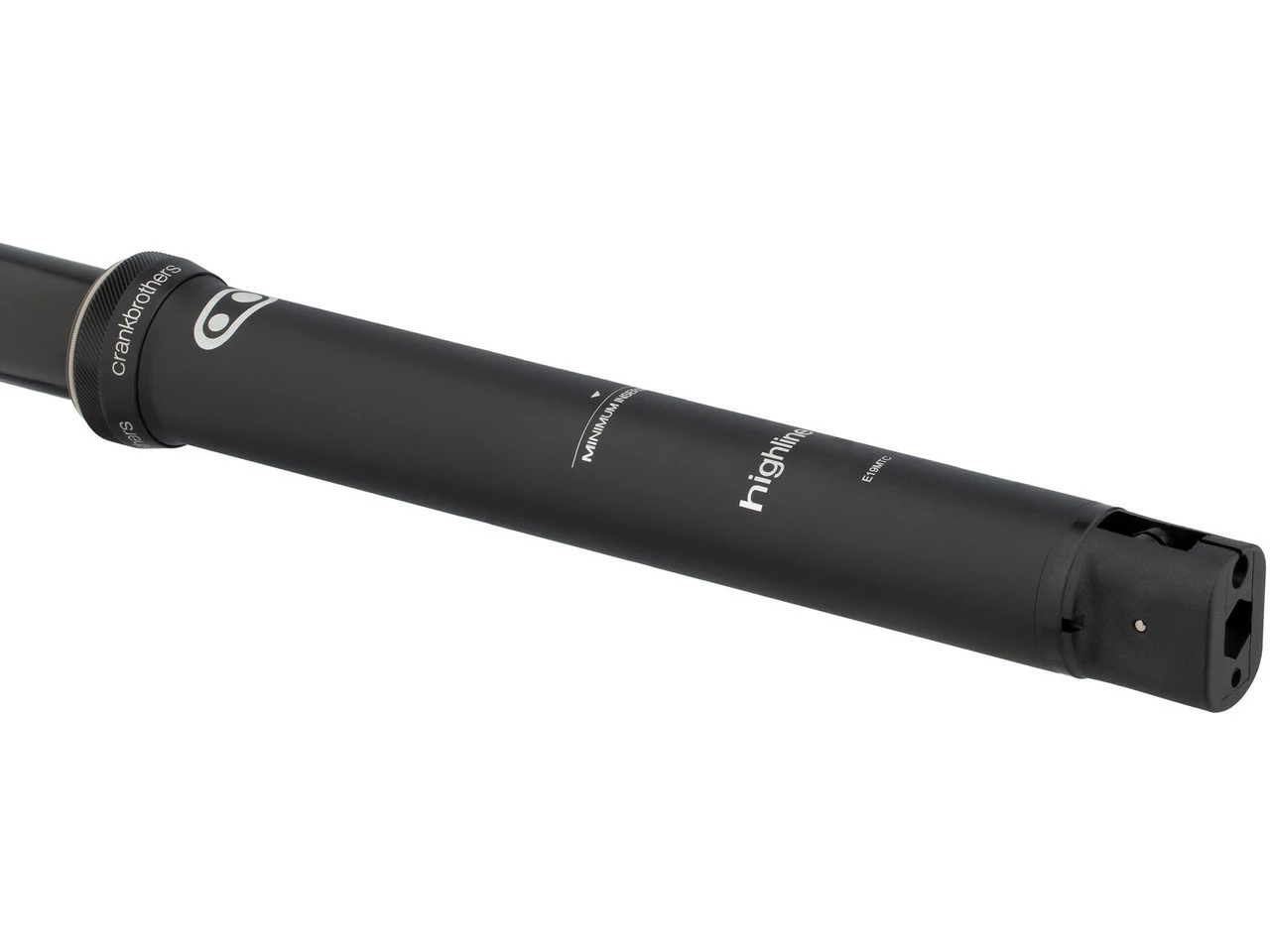

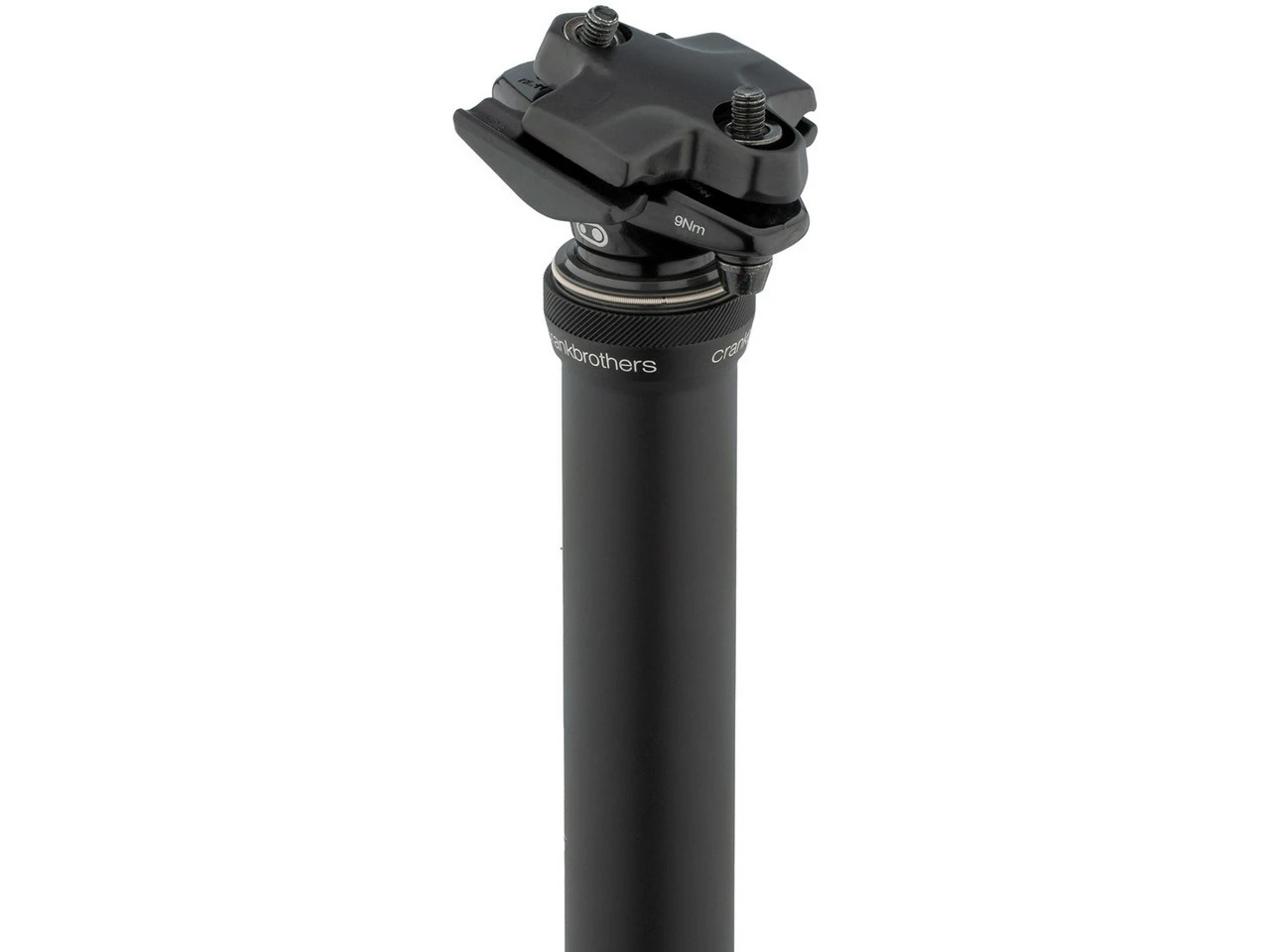

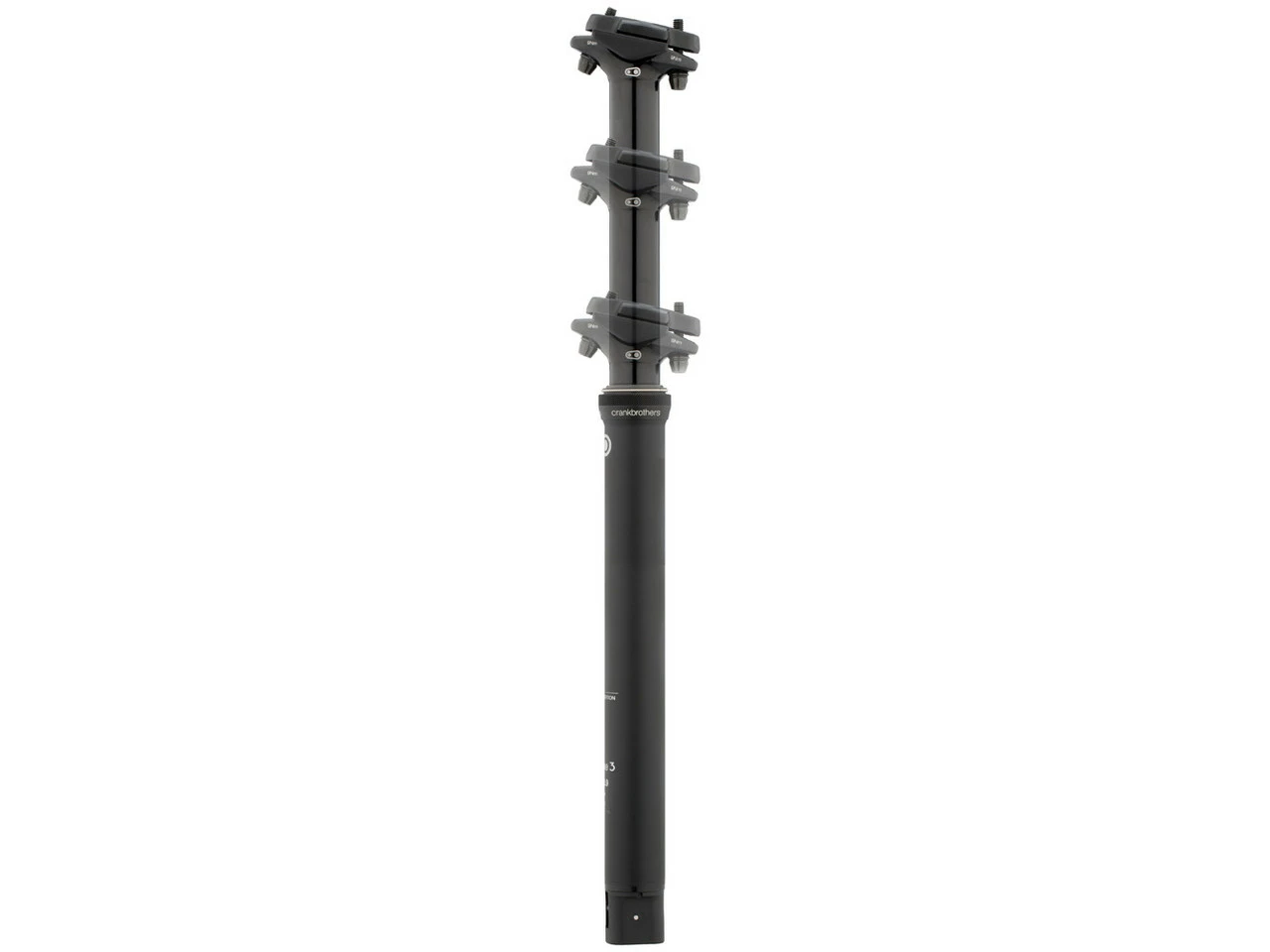

Crankbrothers Highline 3 150 Mm Dropper Post

crankbrothers Highline 3 150 mm dropper post – impeccable function simply installed
The crankbrothers Highline 3 dropper post offers 150 mm steplessly adjustable travel and convinces with its smooth function. The user will also be pleased with the delay-free resetting and the simple installation. Its core is a self-contained hydraulic gas-oil cartridge of the highest reliability. In addition, a Jagwire cable, Igus bearings and Trelleborg seals guarantee top quality. Thanks to its very low height and the clean internal cable routing, the Highline 3 will also help you have more fun on your bike – whether it’s trail riding, an all-mountain adventure trip or a cross-country race.
Specifications:Application:Enduro, All Mountain, Cross CountryTravel:150 mmDiameter:30.9 mm, 31.6 mm, 34.9 mmLength:469 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):270 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (gas-oil mixture) of high industrial quality and reliabilityinternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnaluminium quillstandard 2-bolt clamp47 mm minimum construction height337 mm maximum extension length195 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:30.9 mm / 469 mm / SB 0 mm:
Diameter:30.9 mmLength:469 mmSetback:0 mmManufacturer Number:16374
31.6 mm / 469 mm / SB 0 mm:
Diameter:31.6 mmLength:469 mmSetback:0 mmManufacturer Number:16375
34.9 mm / 469 mm / SB 0 mm:
Diameter:34.9 mmLength:469 mmSetback:0 mmManufacturer Number:16472Contents:1 x crankbrothers Highline 3 150 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
