crankbrothers Highline 3 170 mm dropper post – more fun with more travel
The crankbrothers Highline 3 dropper post provides a maximum of travel: 170 mm, infinitely adjustable. It impresses with its smooth operation and quick return to the starting position and is also easy to install. Its core is a self-contained hydraulic gas-oil cartridge of the highest reliability. In addition, a Jagwire cable, Igus bearings and Trelleborg seals guarantee top quality. Not least because of its very low overall height and the clean internal cable routing, the Highline 3 improves the life of every biker, be he all-mountain king, enduro pro or cross-country specialist.
Specifications:Application:Enduro, All Mountain, Cross CountryTravel:170 mmDiameter:30.9 mm, 31.6 mm, 34.9 mmLength:505 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):285 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (gas-oil mixture) of high industrial quality and reliabilityinternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnaluminium quillstandard 2-bolt clamp47 mm minimum construction height378 mm maximum extension length216 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:30.9 mm / 505 mm / SB 0 mm:
Diameter:30.9 mmLength:505 mmSetback:0 mmManufacturer Number:16376
31.6 mm / 505 mm / SB 0 mm:
Diameter:31.6 mmLength:505 mmSetback:0 mmManufacturer Number:16377
34.9 mm / 505 mm / SB 0 mm:

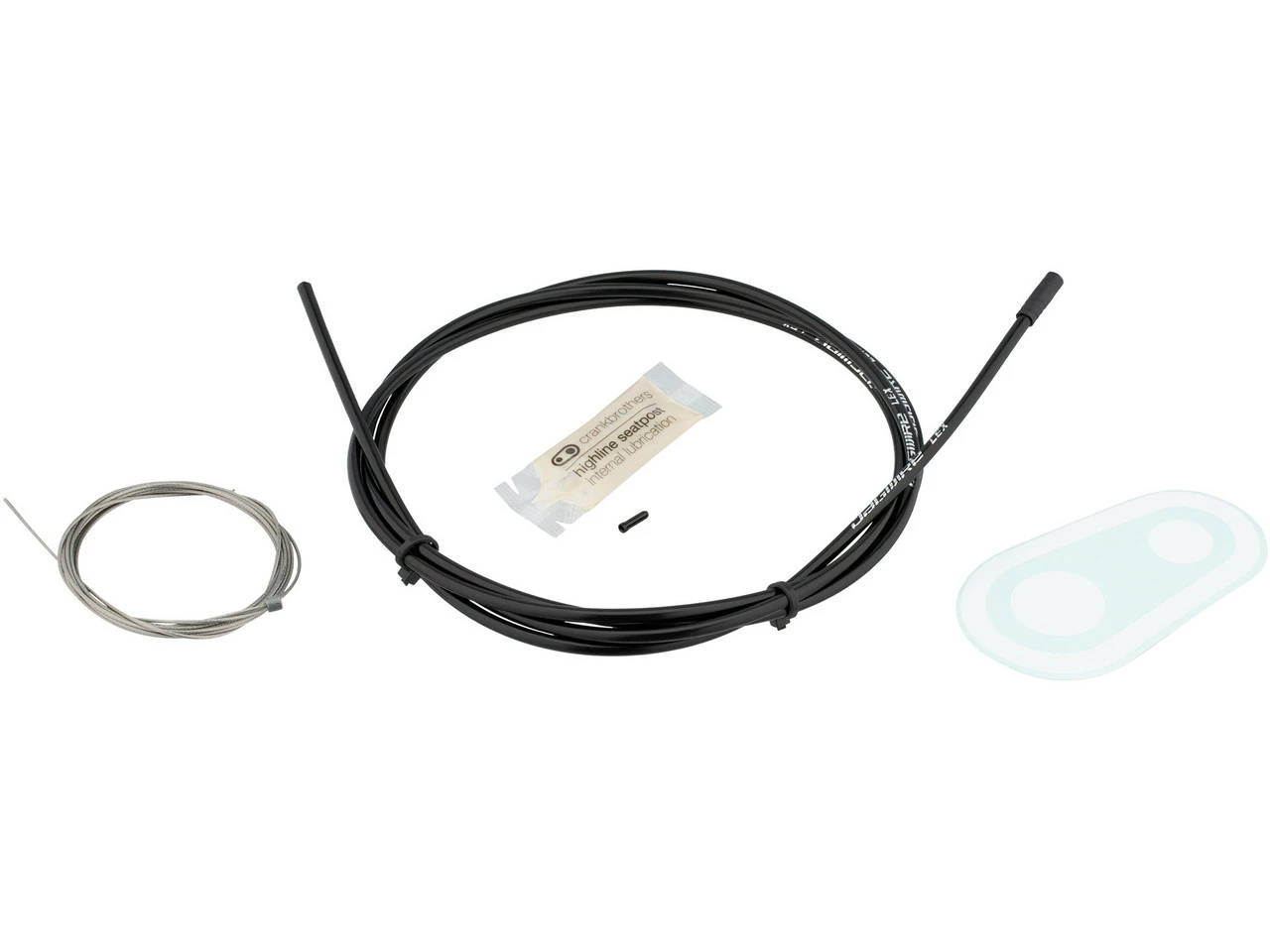

Diameter:34.9 mmLength:505 mmSetback:0 mmManufacturer Number:16473Contents:1 x crankbrothers Highline 3 170 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
