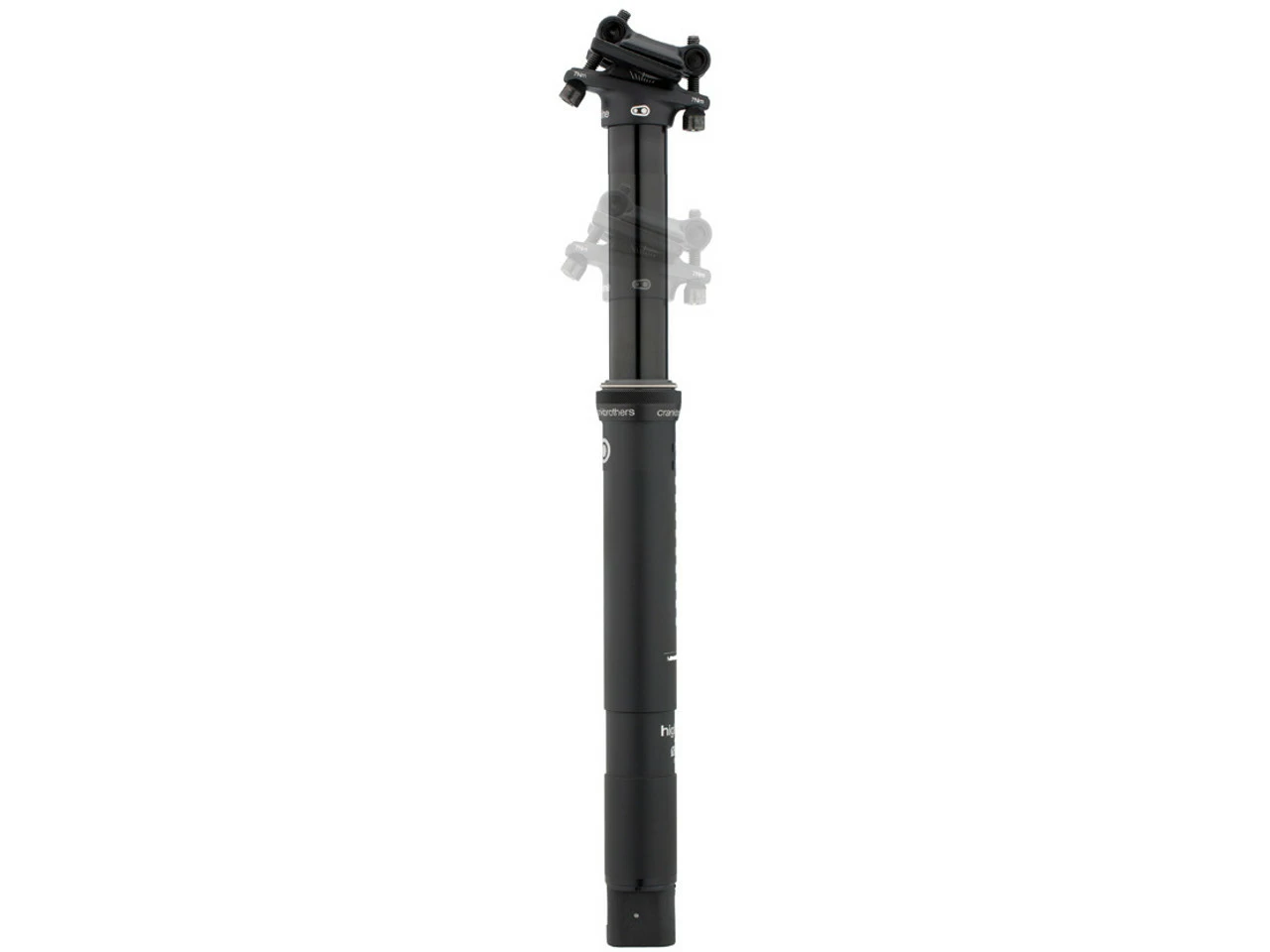

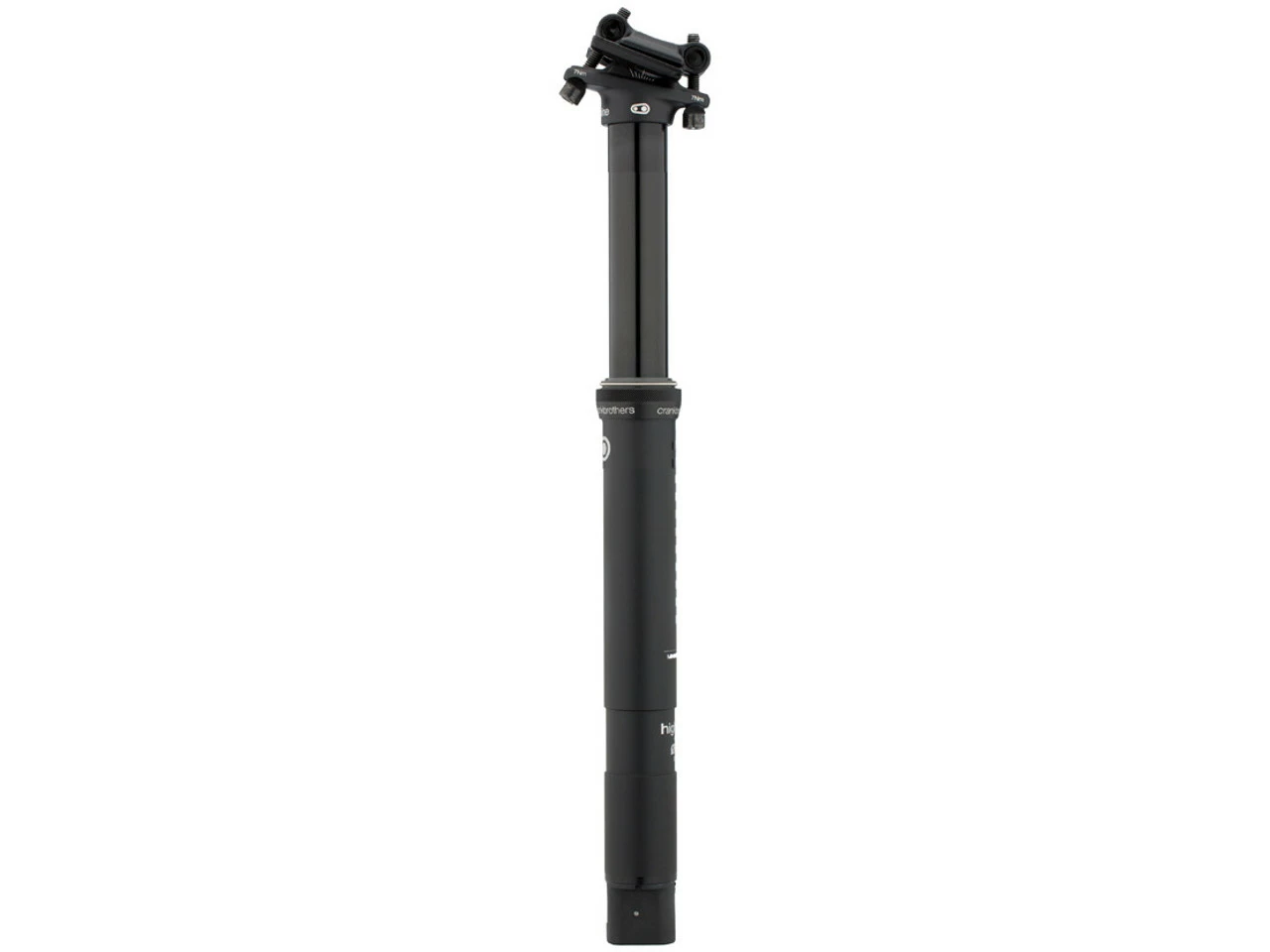

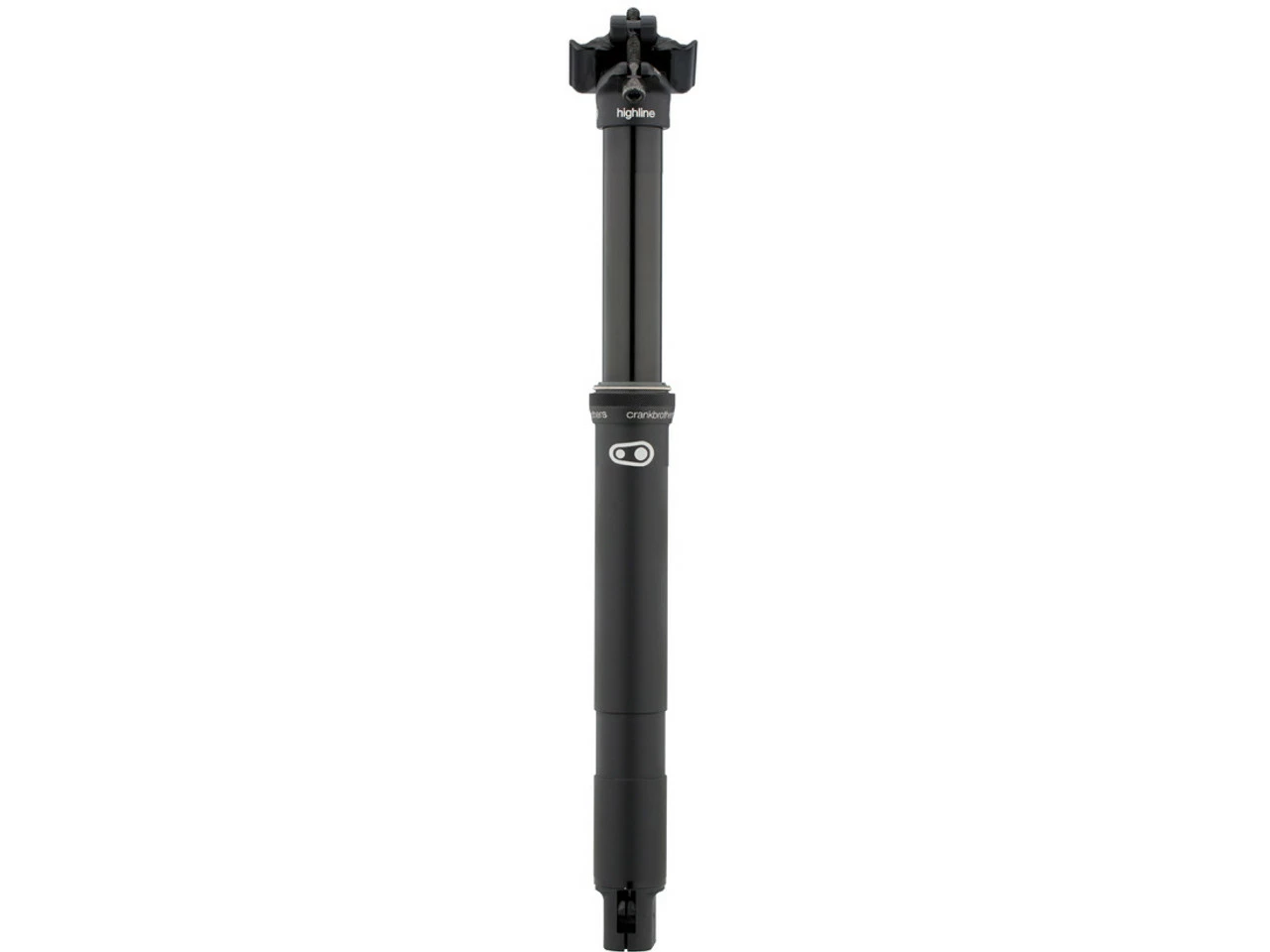

The Highline 7 100 mm dropper post by crankbrothers – with a 2-chamber system

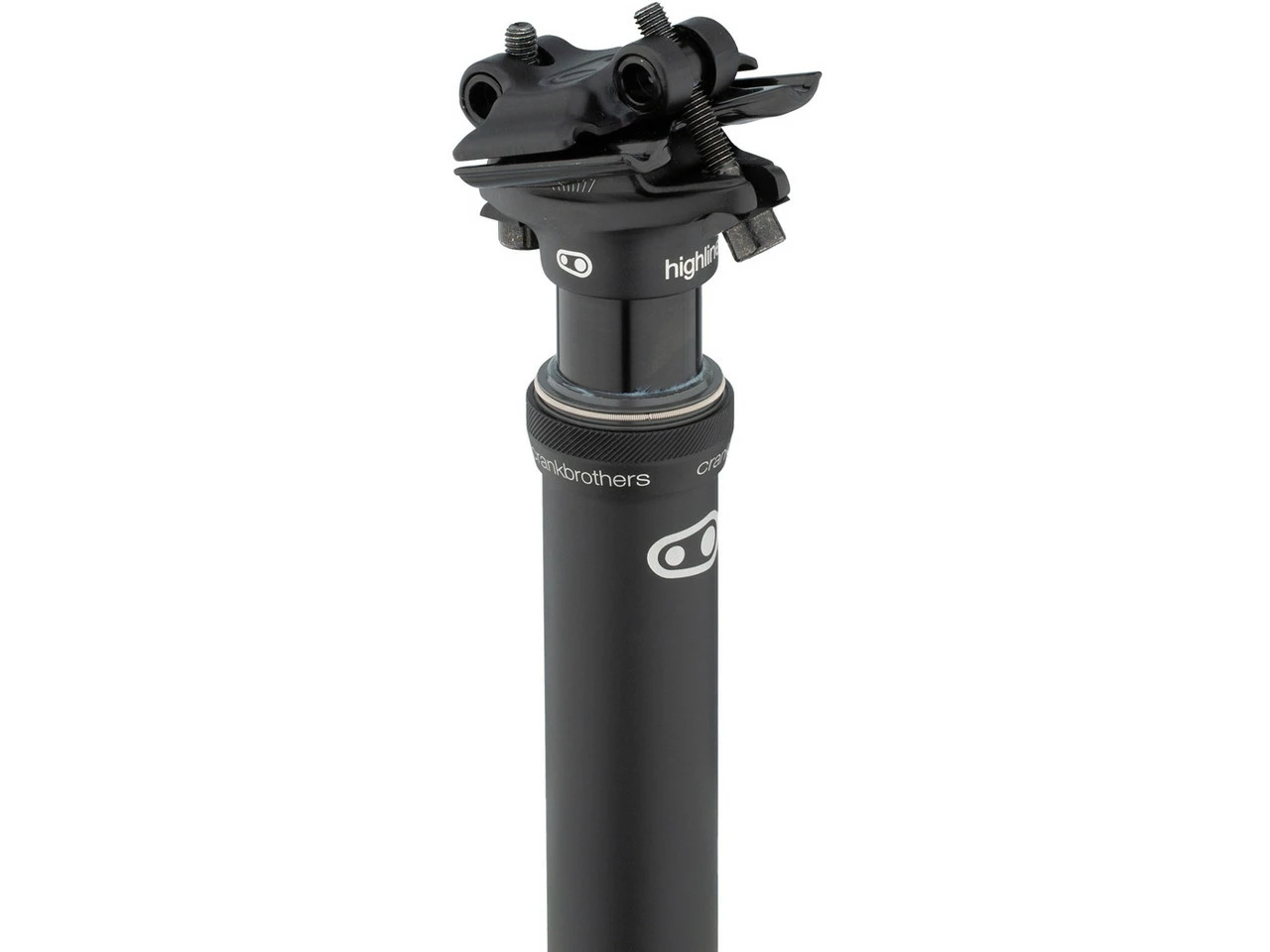

The crankbrothers Highline 7 seatpost in the 100 mm travel version is a dropper post with continuous adjustment. It impresses with its smooth operation, returns to its original position without delay and is also very easy to install. The basis is a self-contained hydraulic IFP cartridge with two chambers and internal floating piston. Thanks to the 2-bolt clamp with quick release head, the saddle can be replaced quickly. The whole thing is rounded off by a Jagwire cable, Igus bearings and Trelleborg seals of the highest quality. Thanks to its extremely low overall height, low weight and clean internal cable routing, the Highline 7 will cause a sensation in the world of cross-country racing and trail riding.
Specifications:Application:Cross CountryTravel:100 mmDiameter:30.9 mm, 31.6 mmLength:367 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):217 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (2 chambers: gas and oil separately) with internal floating pistoninternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnquill made of machine weight-reduced aluminium (10-15 g less than Highline 3)standard 2-bolt clamp w/ quick release47 mm minimum construction height237 mm maximum extension length147 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:30.9 mm / 367 mm / SB 0 mm:
Diameter:30.9 mmLength:367 mmSetback:0 mmManufacturer Number:16378
31.6 mm / 367 mm / SB 0 mm:

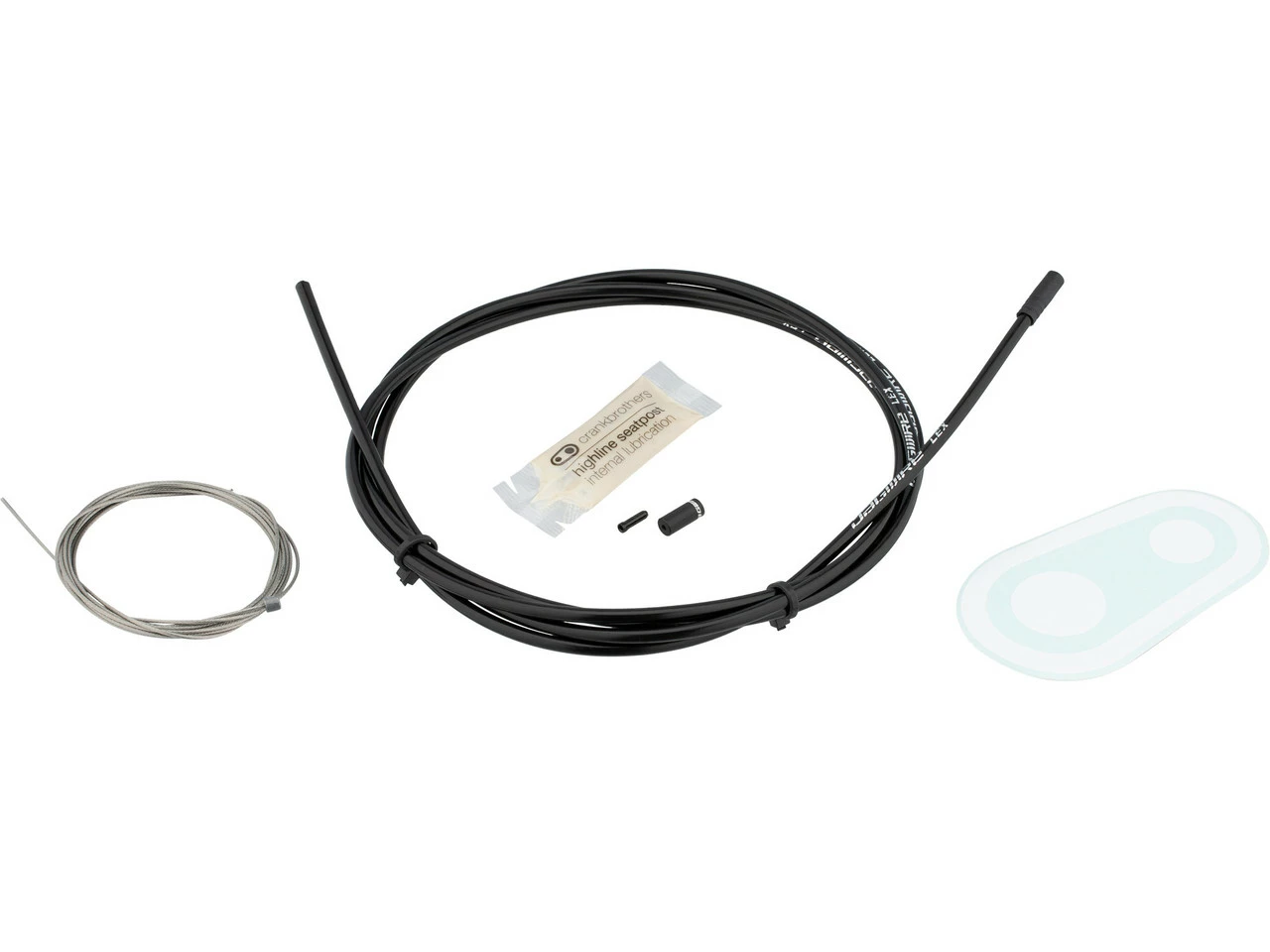

Diameter:31.6 mmLength:367 mmSetback:0 mmManufacturer Number:16379Contents:1 x crankbrothers Highline 7 100 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
Crankbrothers Highline 7 100 Mm Dropper Post
£299.00 Original price was: £299.00.£99.99Current price is: £99.99.
- Shop with Zero Worries
- Multiple payment methods, 100% payment security
- Sustainable materials, for a better tomorrow.
- Unbeatable Quality, Unbeatable Value

| Ausführungen | black/30.9 mm / 367 mm / SB 0 mm, black/31.6 mm / 367 mm / SB 0 mm |
|---|
