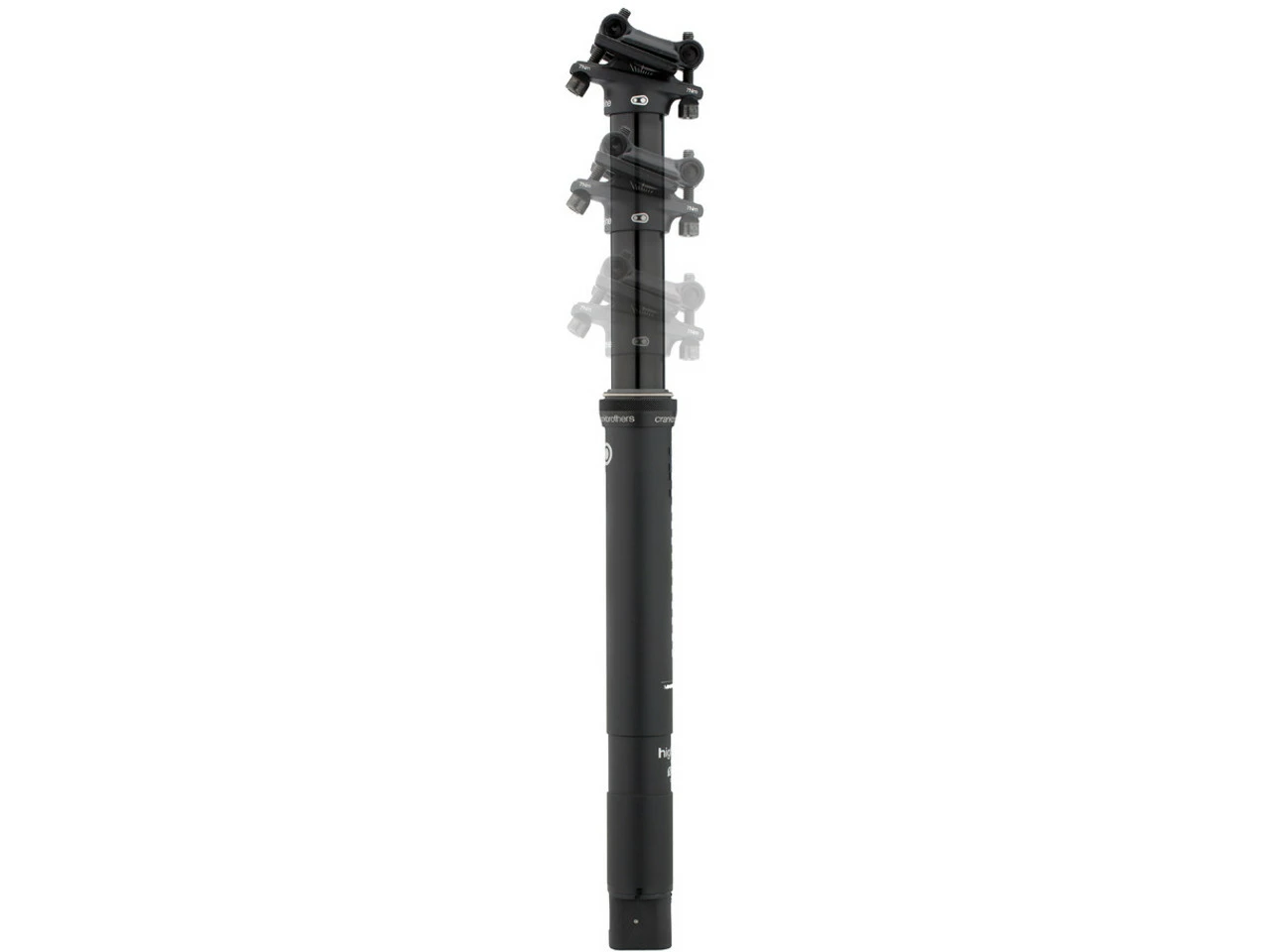

Crankbrothers Highline 7 125 Mm Dropper Post

The Highline 7 125 mm dropper post by crankbrothers – with Quick Connect clamp
The adjustable crankbrothers Highline 7 seatpost with 125 mm travel allows you to adjust the saddle height smoothly and reliably. It quickly returns to its start position and also scores with an uncomplicated setup. Its core piece is a self-contained hydraulic IFP cartridge with two chambers and internal floating piston. Thanks to the 2-bolt clamp with quick release head, the saddle can be replaced quickly. The whole thing is rounded off by a Jagwire cable, Igus bearings and Trelleborg seals of the highest quality. With its extremely low overall height, low weight and clean internal cable routing, the Highline 7 increases the fun of riding on any all-mountain adventure, enduro race or cross-country trip.

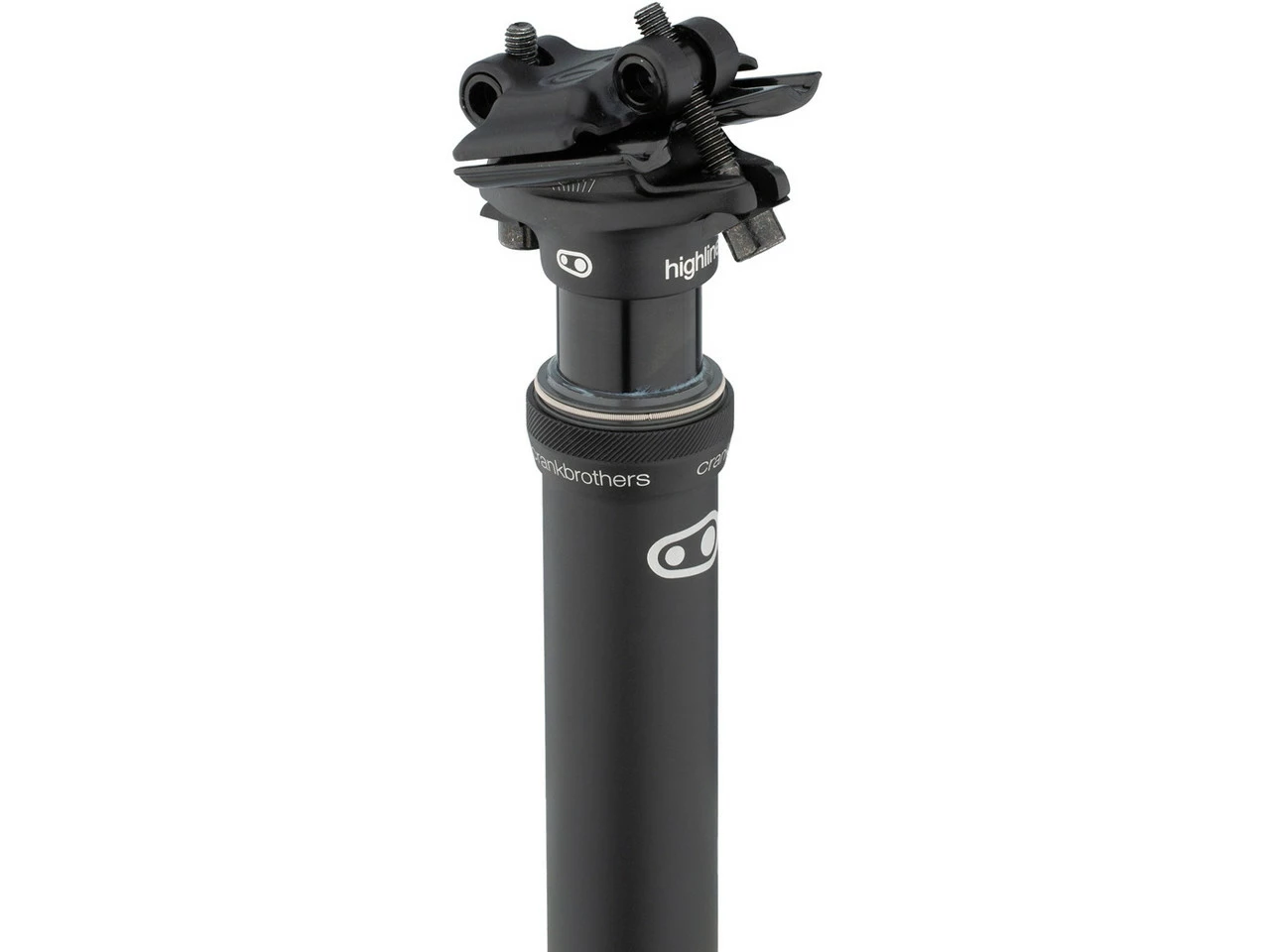

Specifications:Application:Cross Country, Enduro, All MountainTravel:125 mmDiameter:30.9 mm, 31.6 mmLength:417 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):242 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (2 chambers: gas and oil separately) with internal floating pistoninternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnquill made of machine weight-reduced aluminium (10-15 g less than Highline 3)standard 2-bolt clamp w/ quick release47 mm minimum construction height286 mm maximum extension length172 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:30.9 mm / 417 mm / SB 0 mm:
Diameter:30.9 mmLength:417 mmSetback:0 mmManufacturer Number:16380
31.6 mm / 417 mm / SB 0 mm:

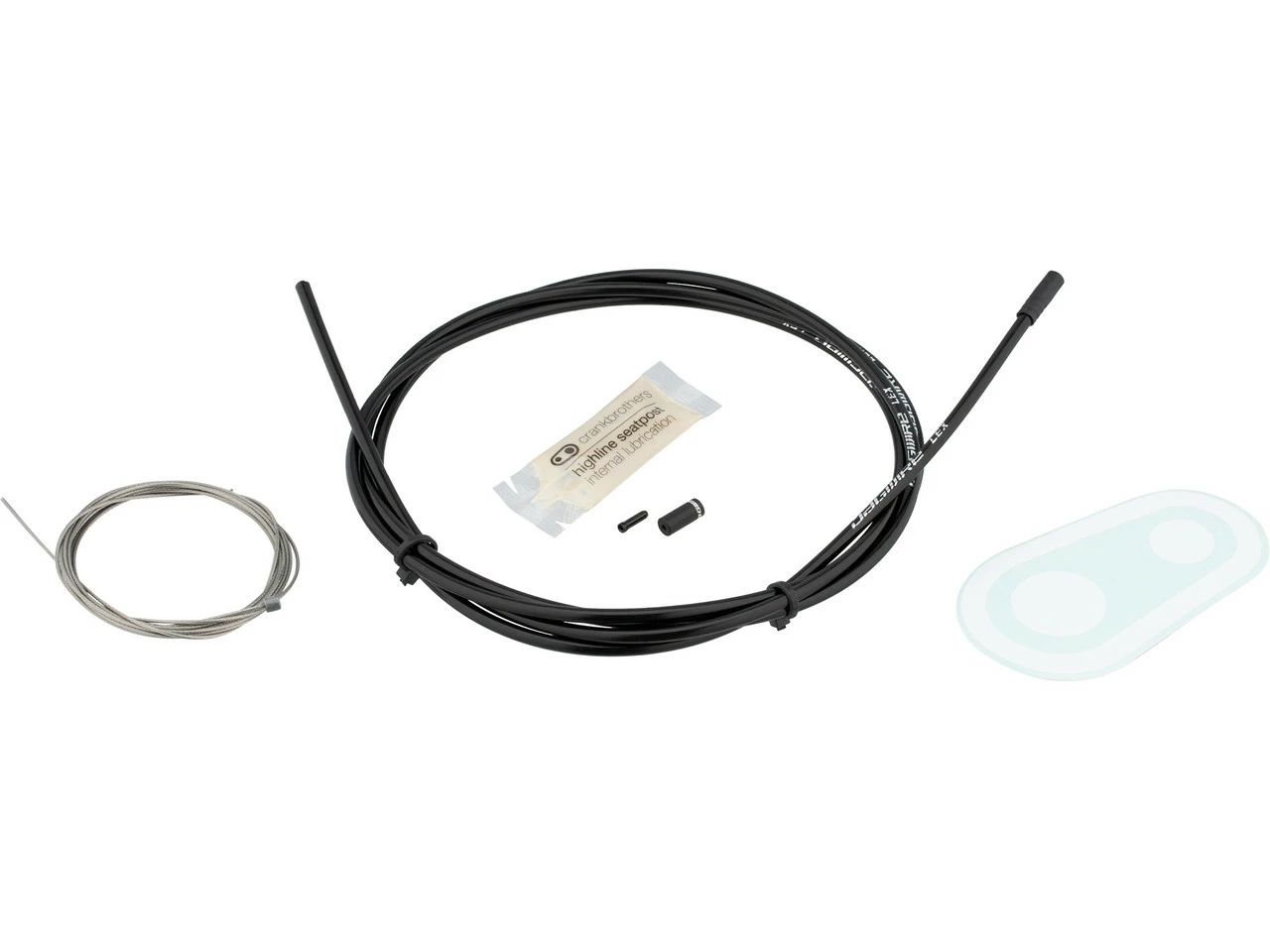

Diameter:31.6 mmLength:417 mmSetback:0 mmManufacturer Number:16381Contents:1 x crankbrothers Highline 7 125 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
