Crankbrothers Highline 7 170 Mm Dropper Post

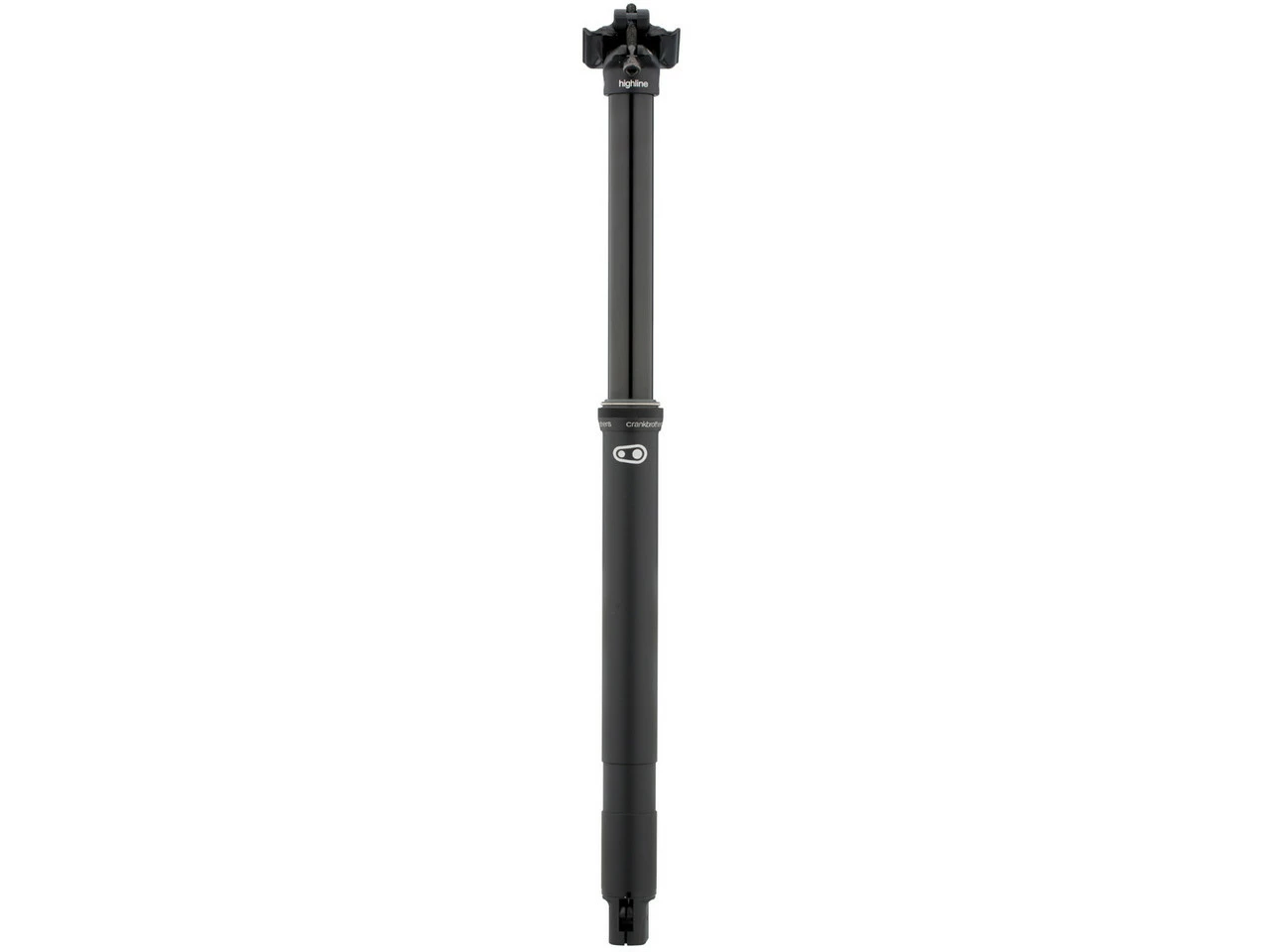

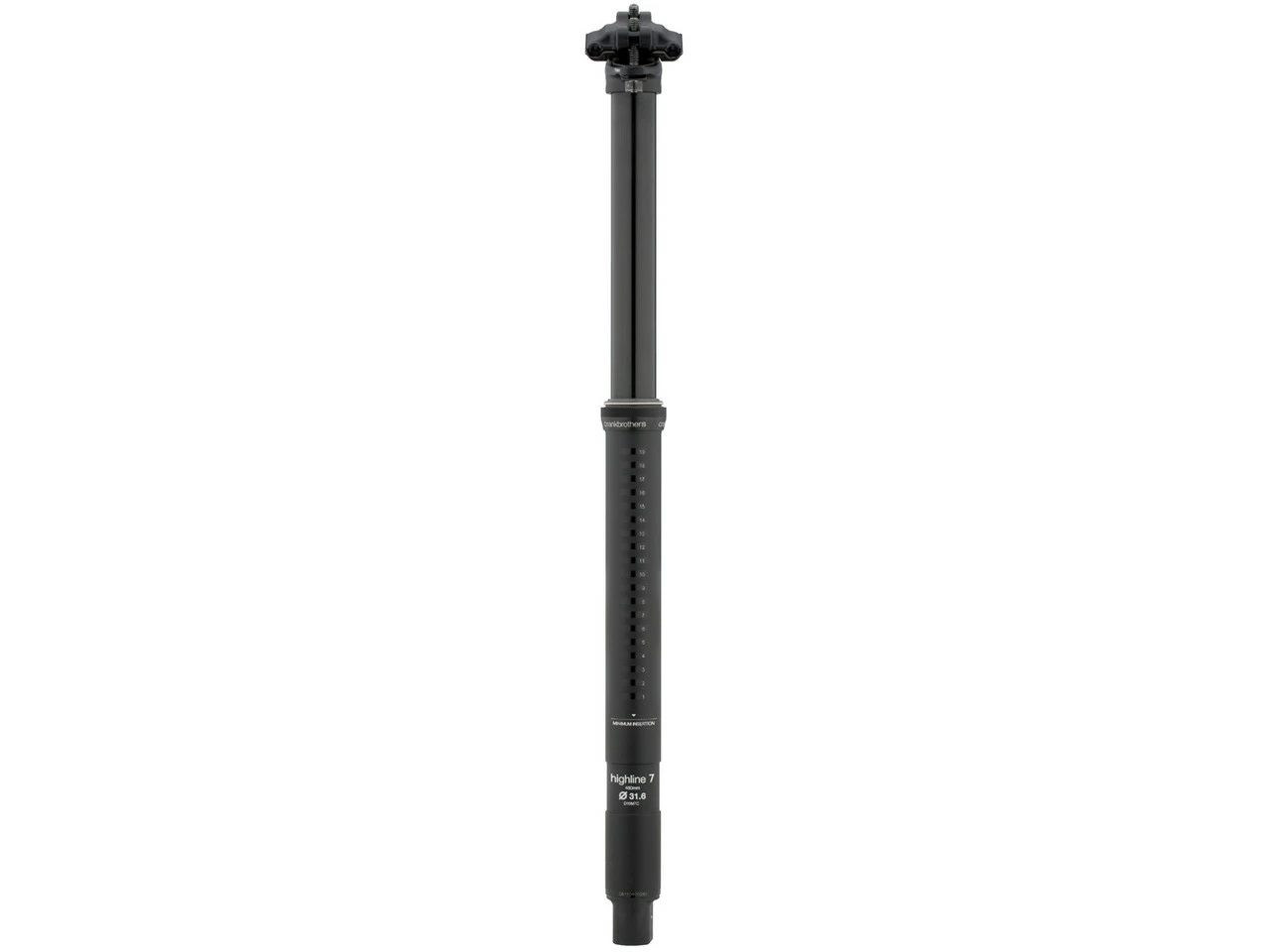

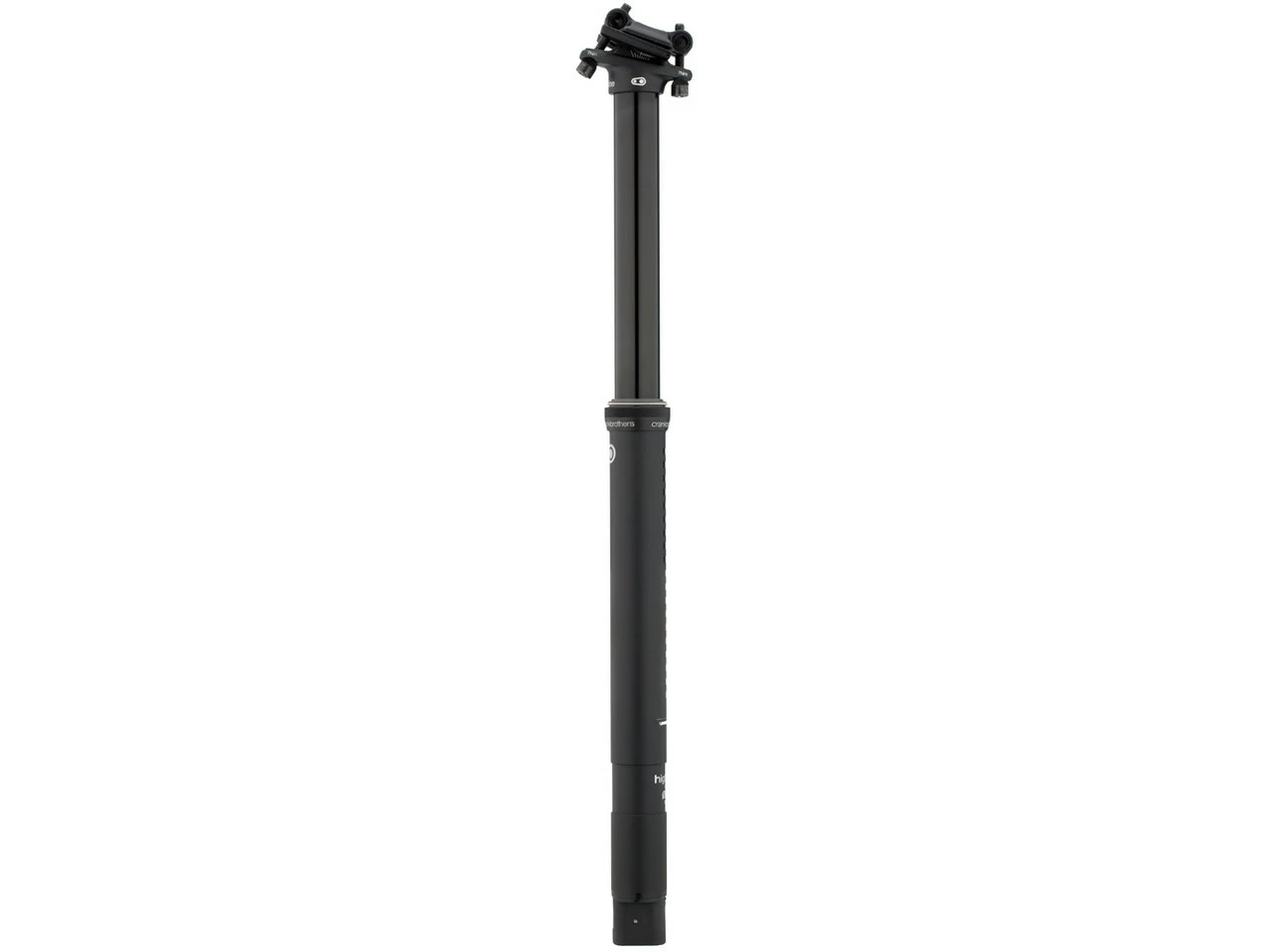

crankbrothers Highline 7 170 mm dropper post – a premium product with maximum travel

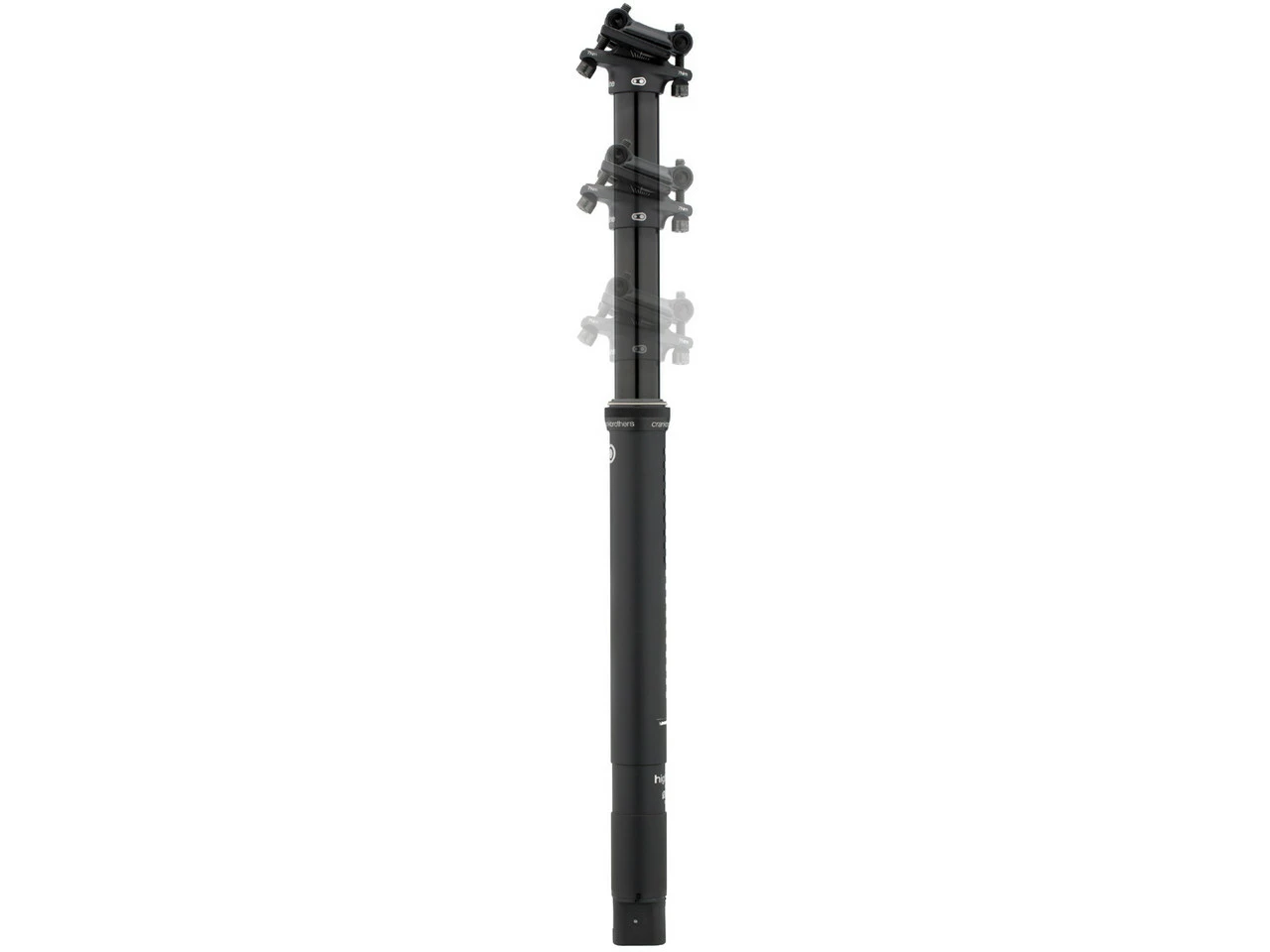

The crankbrothers Highline 7 170 mm seatpost has the most travel of all Highline dropper posts. It scores with its stepless adjustment, which is absolutely smooth and reliable. The quick return to the starting position and the uncomplicated setup also speak for themselves. The basis is a self-contained hydraulic IFP cartridge with two chambers and internal floating piston. Thanks to the 2-bolt clamp with quick release head, the saddle can be replaced quickly. The whole thing is rounded off by a Jagwire cable, Igus bearings and Trelleborg seals of the highest quality. With its remarkably low overall height, low weight and clean internal cable routing, the Highline 7 will delight the enduro, all-mountain and cross-country specialists of the world.

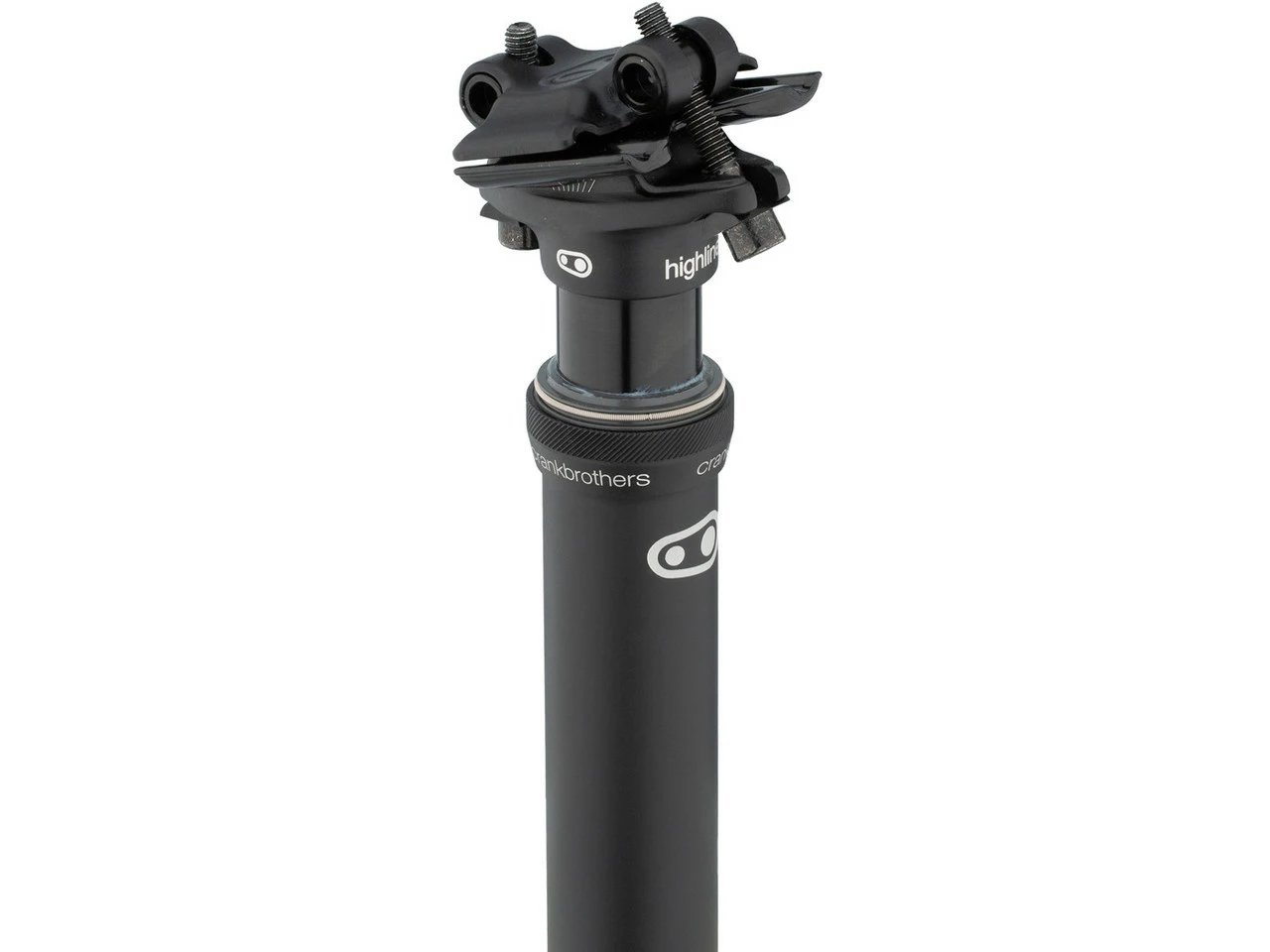

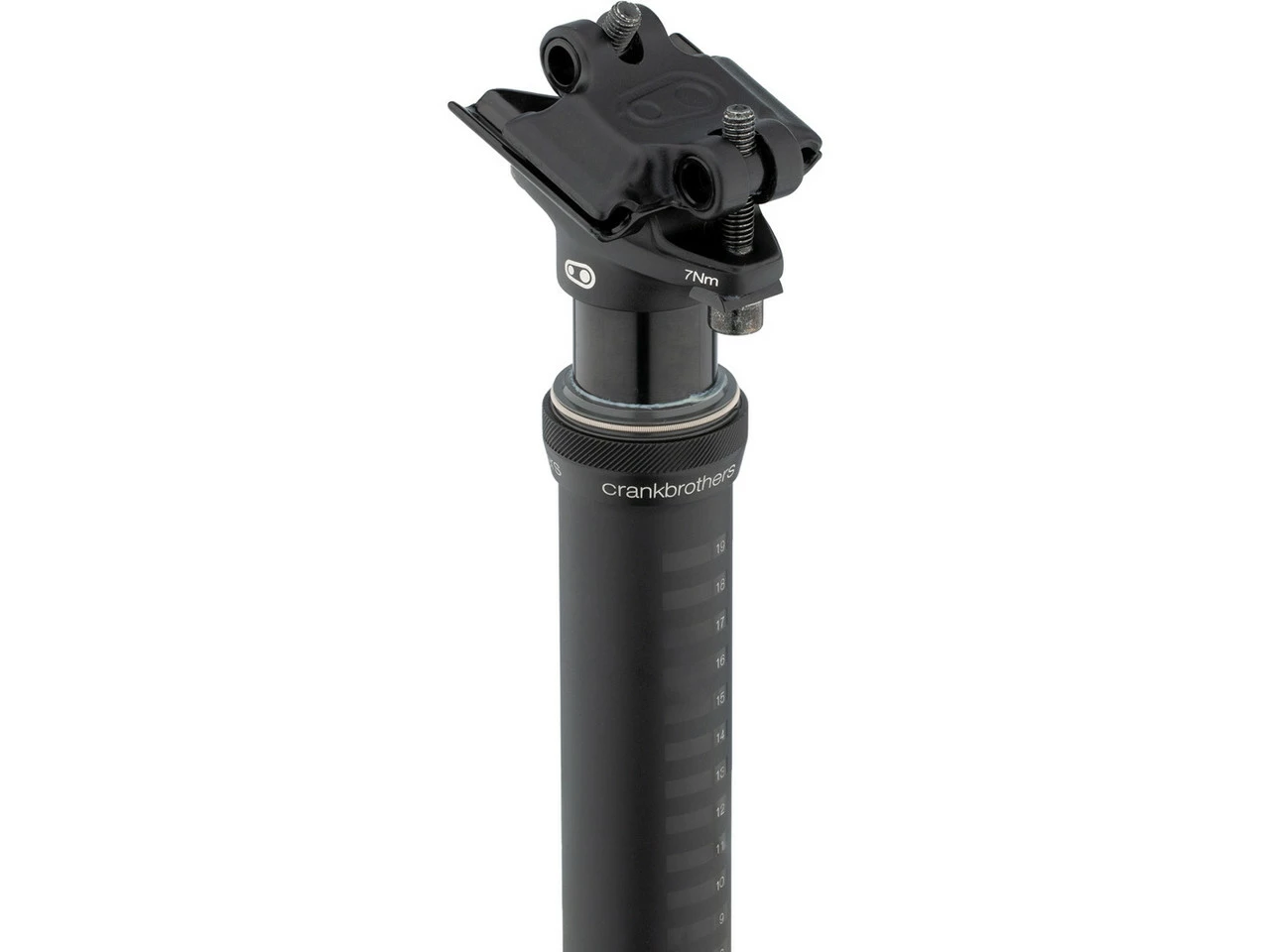

Specifications:Application:Enduro, All Mountain, Cross CountryTravel:170 mmDiameter:30.9 mm, 31.6 mmLength:507 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):287 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (2 chambers: gas and oil separately) with internal floating pistoninternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnquill made of machine weight-reduced aluminium (10-15 g less than Highline 3)standard 2-bolt clamp w/ quick release47 mm minimum construction height377 mm maximum extension length217 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:30.9 mm / 507 mm / SB 0 mm:
Diameter:30.9 mmLength:507 mmSetback:0 mmManufacturer Number:16384
31.6 mm / 507 mm / SB 0 mm:

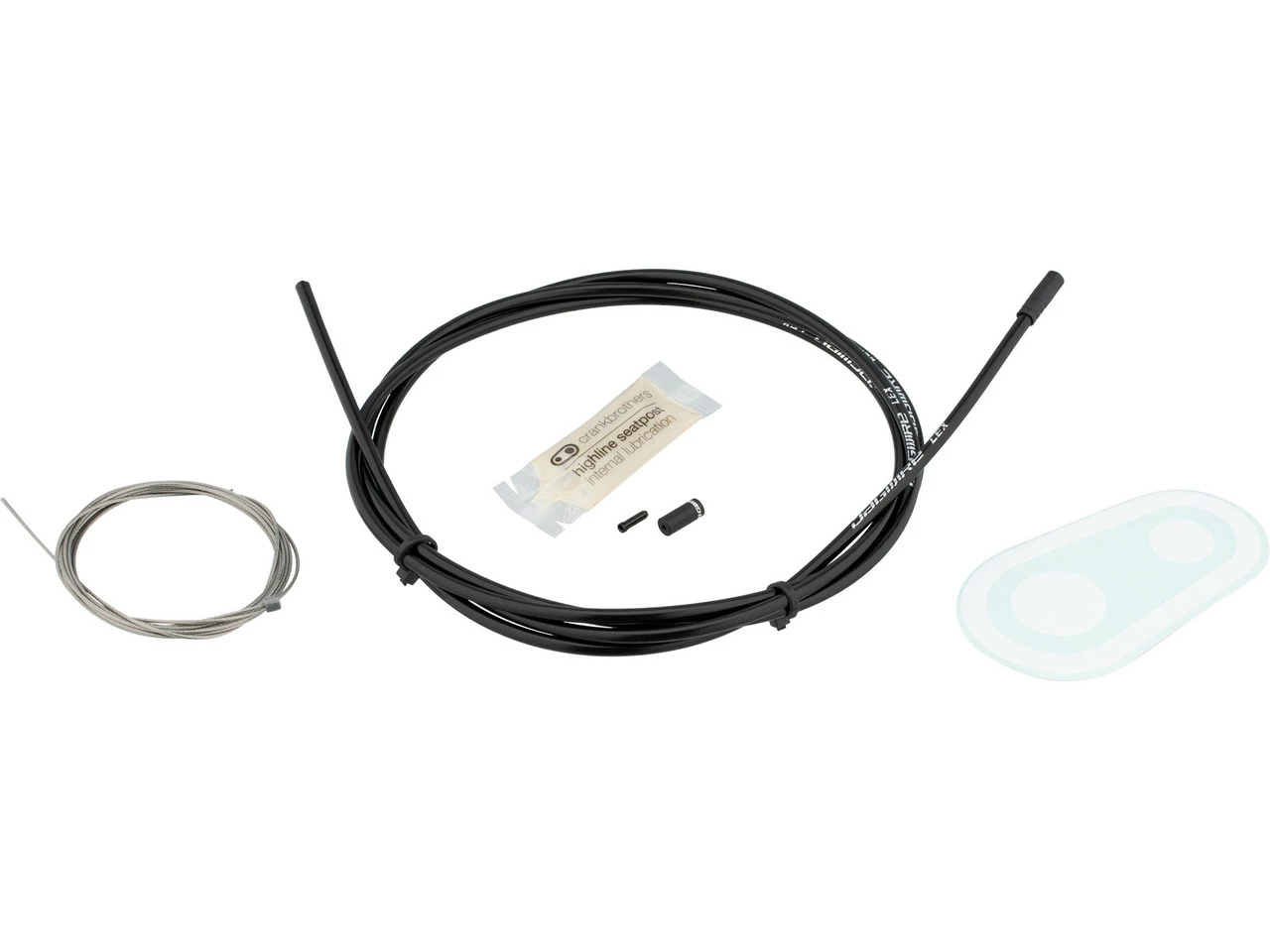

Diameter:31.6 mmLength:507 mmSetback:0 mmManufacturer Number:16385Contents:1 x crankbrothers Highline 7 170 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
