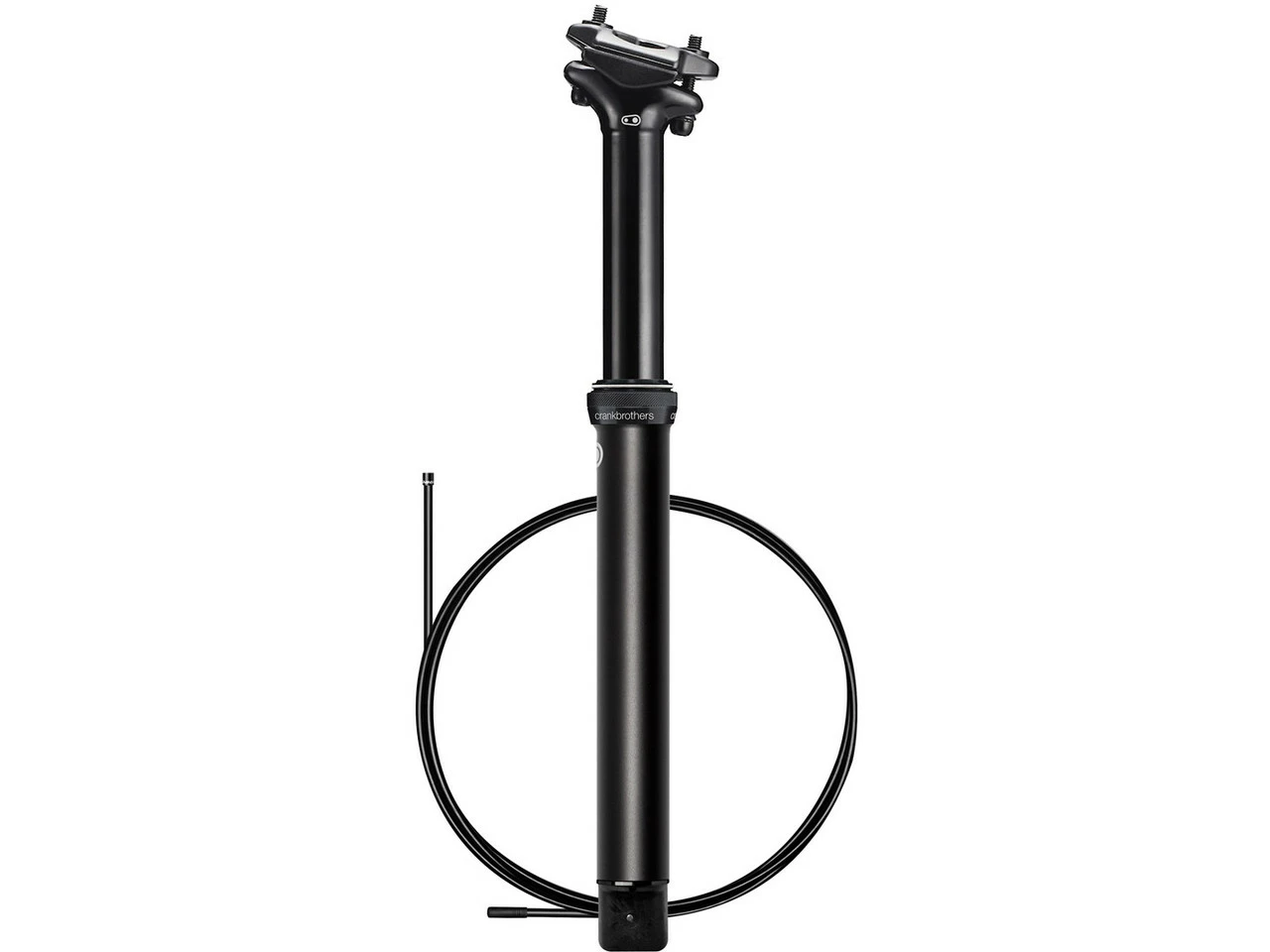

Crankbrothers Highline XC/Gravel 100 Mm Dropper Post

crankbrothers Highline XC/Gravel 100 mm dropper post – With high quality IFP cartridge
The crankbrothers Highline XC/Gravel dropper post with 100 mm of travel has a diameter of 27.2 mm. Its advantages include its smooth function, continuous adjustment, immediate return and simple assembly. The basis is a self-contained hydraulic IFP cartridge with two chambers and internal floating piston. In addition, a Jagwire cable, Igus bearings and Trelleborg seals guarantee top quality. The Highline XC/Gravel will thrill the Cross Country racer and Gravel enthusiast with its low overall stack and clean internal cable routing.
Specifications:Application:Gravel, Cyclocross, Cross CountryTravel:100 mmDiameter:27.2 mmLength:427 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):264 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (2 chambers: gas and oil separately) with internal floating pistoninternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnaluminium quillstandard 2-bolt clamp47 mm minimum construction height241 mm maximum extension length146 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:27.2 mm / 427 mm / SB 0 mm:
Diameter:27.5 mmLength:427 mmSetback:0 mmManufacturer Number:16468Contents:1 x crankbrothers Highline XC/Gravel 100 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
