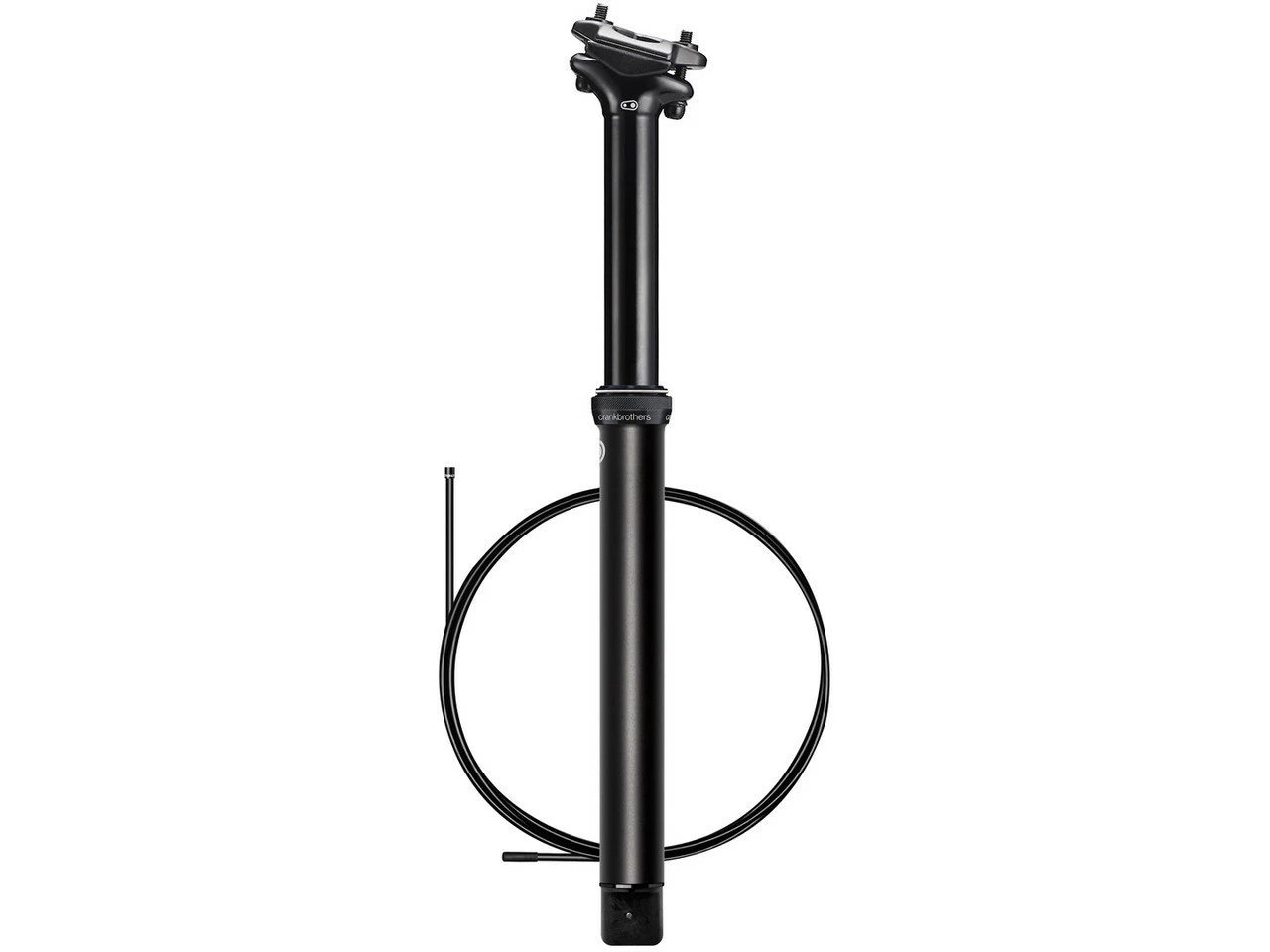

Crankbrothers Highline XC/Gravel 125 Mm Dropper Post

crankbrothers Highline XC/Gravel 125 mm dropper post – Highly reliable
The crankbrothers Highline XC/Gravel dropper post with 125 mm of travel and 27.2 mm diameter is a dropper with infinite adjustment. It also scores points for its smooth function, quick return to the starting position and easy assembly. Its’ base is a self-contained hydraulic IFP cartridge with two chambers and internal floating piston. The Jagwire cable, Igus bearings and Trelleborg seals stand for top quality. Also, with its remarkably low stack and clean internal cable routing, the Highline XC/Gravel will help Cross Country racers and gravel adventurers have more fun on the bike.
Specifications:Application:Cross Country, GravelTravel:125 mmDiameter:27.2 mmLength:452 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):264 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (2 chambers: gas and oil separately) with internal floating pistoninternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnaluminium quillstandard 2-bolt clamp47 mm minimum construction height290 mm maximum extension length172 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:27.2 mm / 452 mm / SB 0 mm:
Diameter:27.2 mmLength:452 mmSetback:0 mmManufacturer Number:16470Contents:1 x crankbrothers Highline XC/Gravel 125 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
