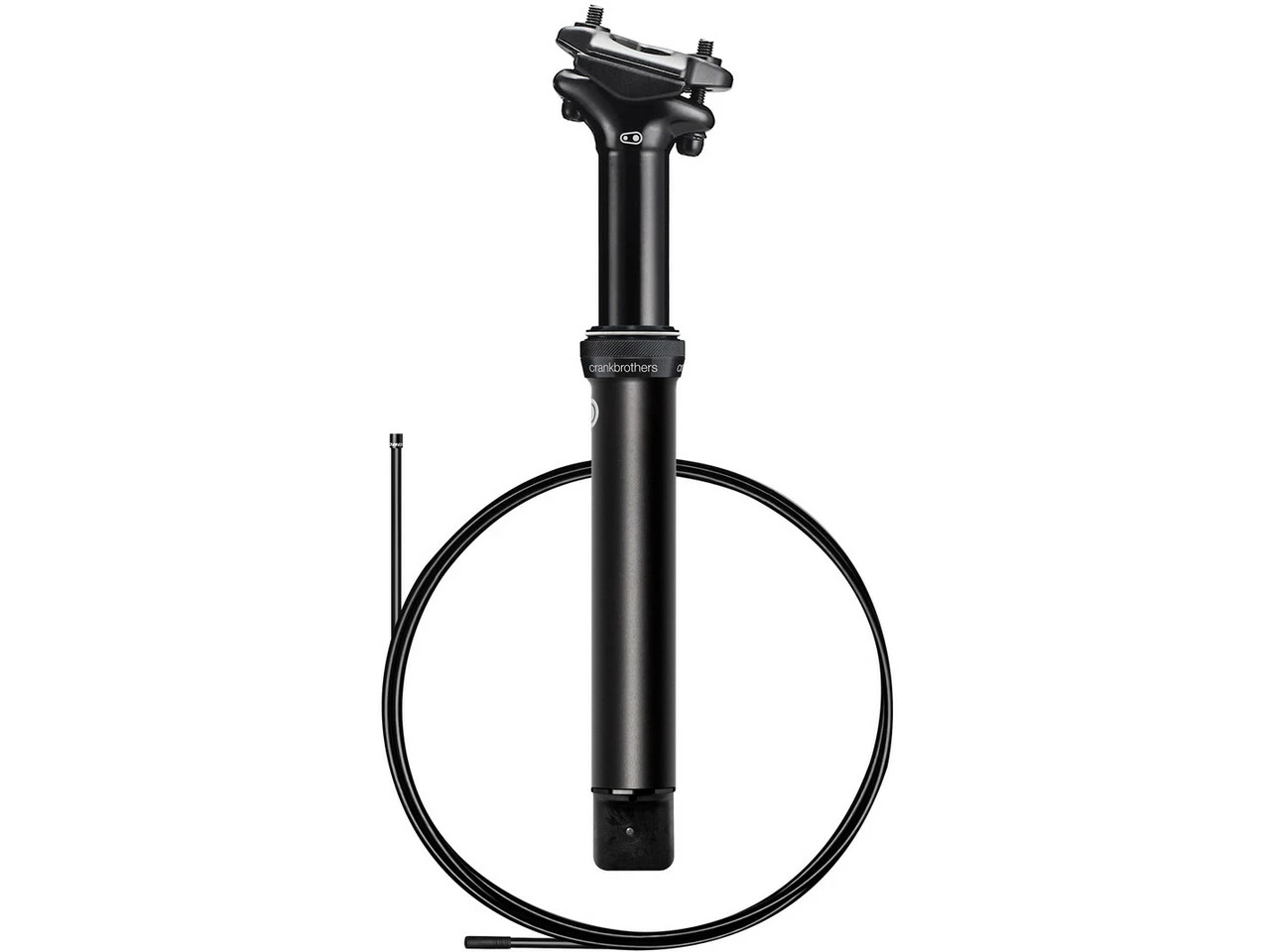

Crankbrothers Highline XC/Gravel 80 Mm Dropper Post

The Highline XC/Gravel 80 mm dropper post by crankbrothers – For off-road adventures
The crankbrothers Highline XC/Gravel dropper post with 80 mm of travel and 27.2 mm diameter can be used as a dropper on your gravel, mountain or cyclocross bike. It is infinitely adjustable and impresses with its smooth operation, quick return to the starting position and easy installation. The basis is a self-contained hydraulic IFP cartridge with two chambers and internal floating piston. The Jagwire cable, Igus bearings and Trelleborg seals stand for the best quality. With its low overall stack and clean internal cable routing, the Highline XC/Gravel will soon accompany you on your off road adventures.
Specifications:Application:Gravel, Cyclocross, Cross CountryTravel:80 mmDiameter:27.2 mmLength:407 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard)Material:aluminium (7075-T6)Approved For:Insertion Depth (max.):264 mmInsertion Depth (min.):100 mmFeatures:lower insertion depth suitable for many framespremium seals by Trelleborgexclusive plain bearings by IgusJagwire cable and cable housingencapsulated hydraulic cartridge (2 chambers: gas and oil separately) with internal floating pistoninternal cable routingquick connection mechanism for easy cable installationlinear actuator for quick returnaluminium quillstandard 2-bolt clamp47 mm minimum construction height283 mm maximum extension length125 mm minimum extension lengthremote with especially flexible mount system available separately
Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.
Models:27.2 mm / 407 mm / SB 0 mm:
Diameter:27.2 mmLength:407 mmSetback:0 mmManufacturer Number:16500Contents:1 x crankbrothers Highline XC/Gravel 80 mm dropper post1 x Jagwire cable1 x Jagwire cable housingOrder Together:The remote kit is required for use.
