Dt-swiss D 232 60 Mm Remote Seatpost

The D 232 60 mm Remote seatpost by DT Swiss – for fast XC bikes

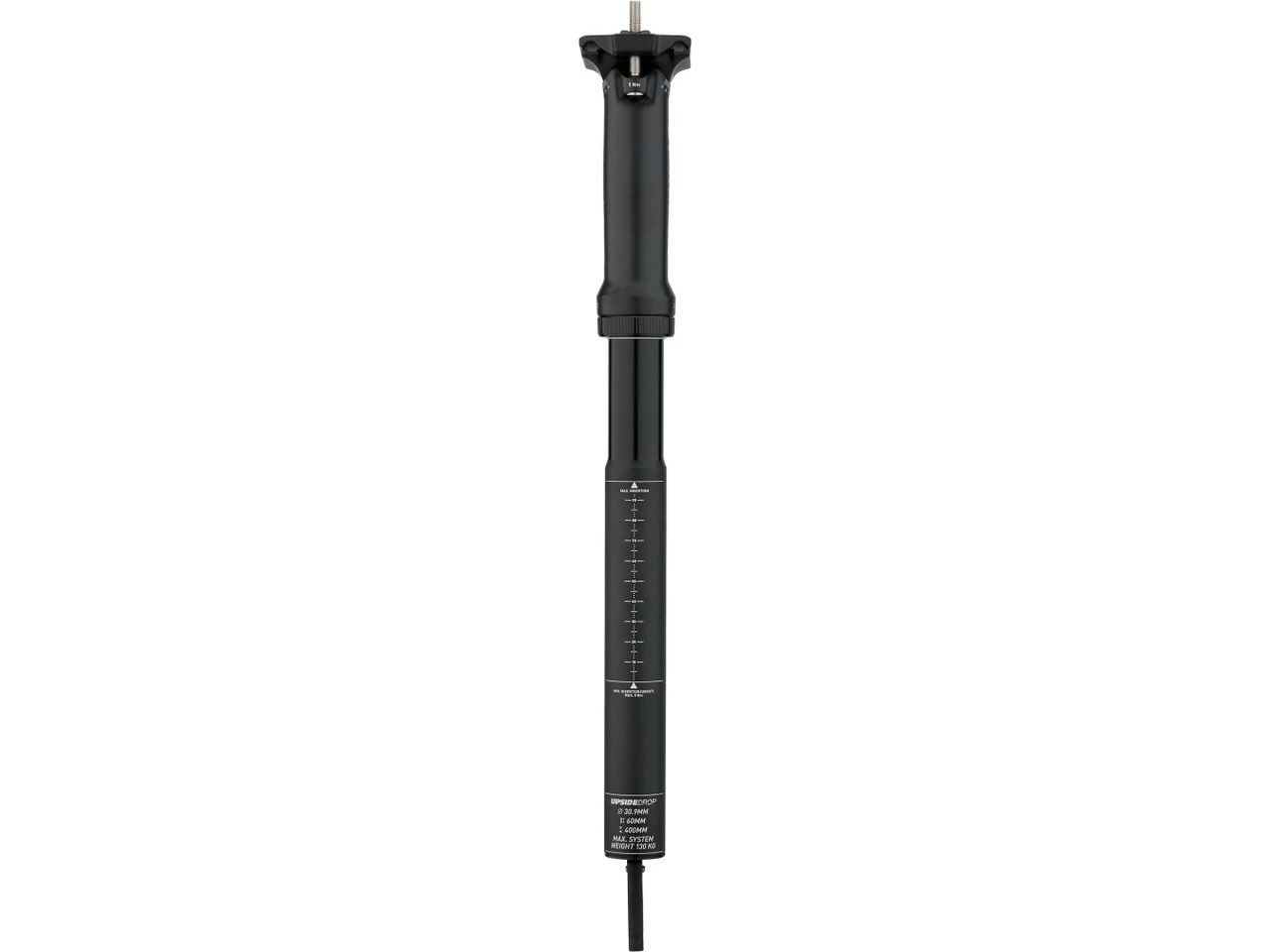

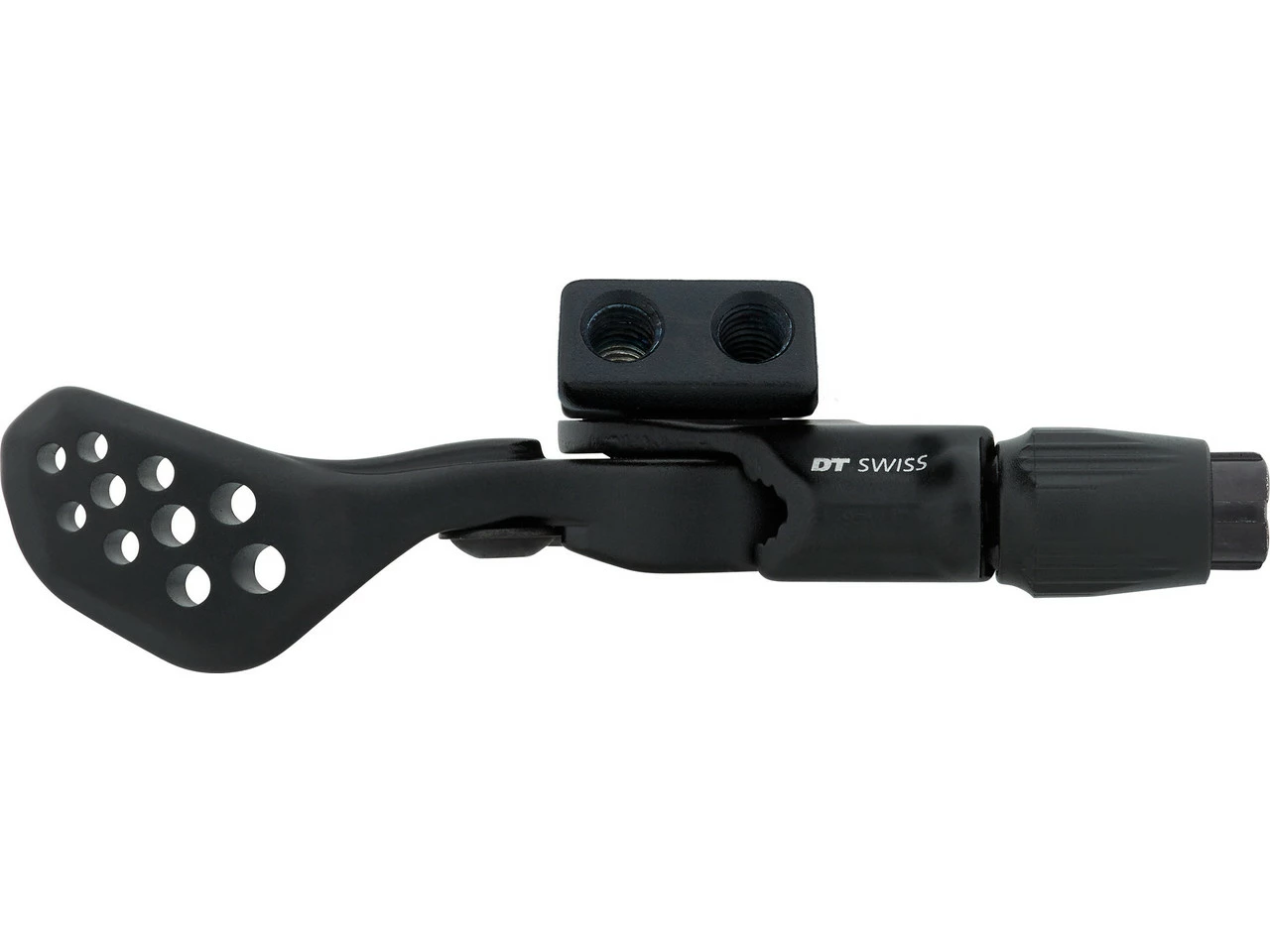

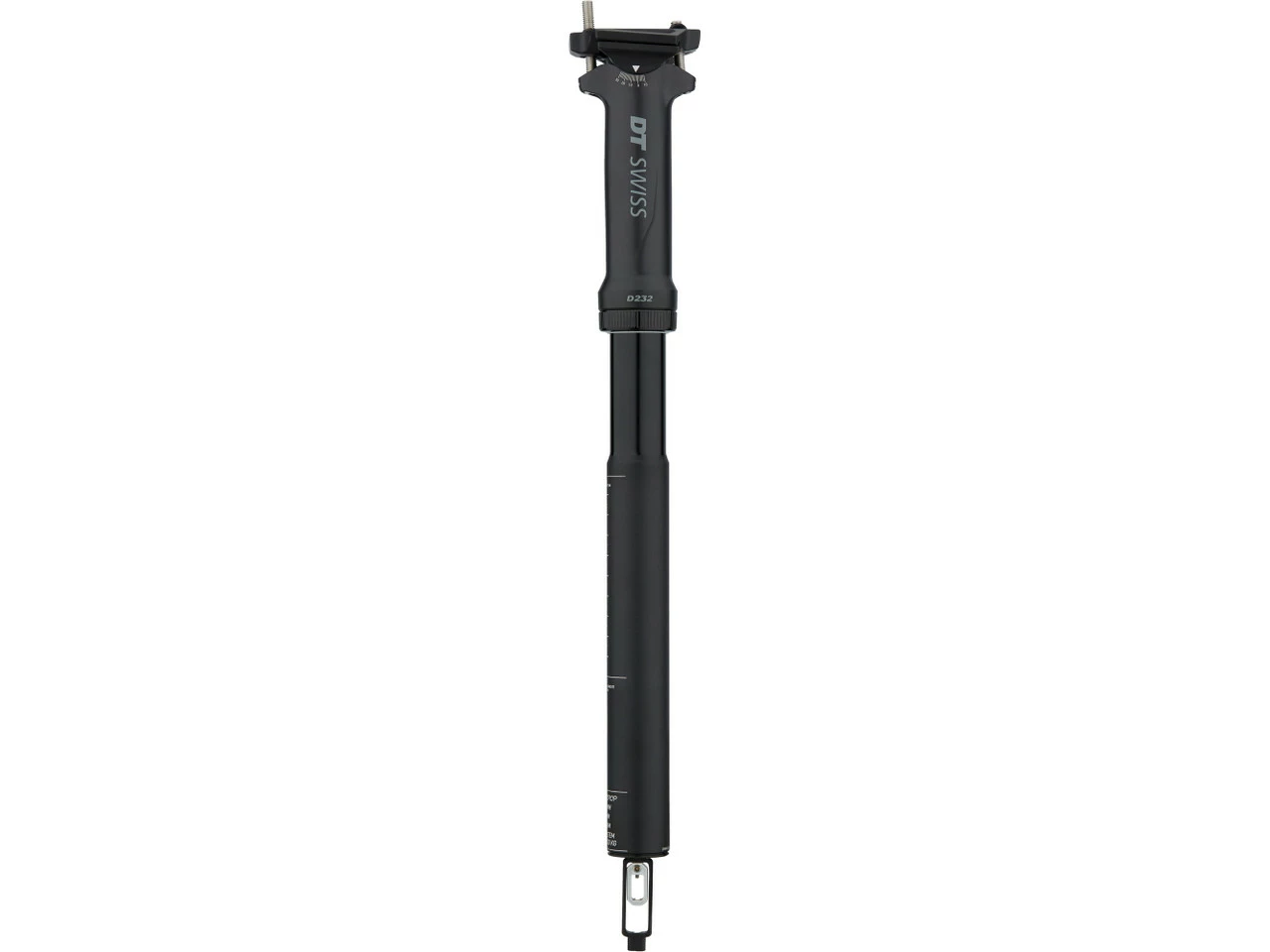

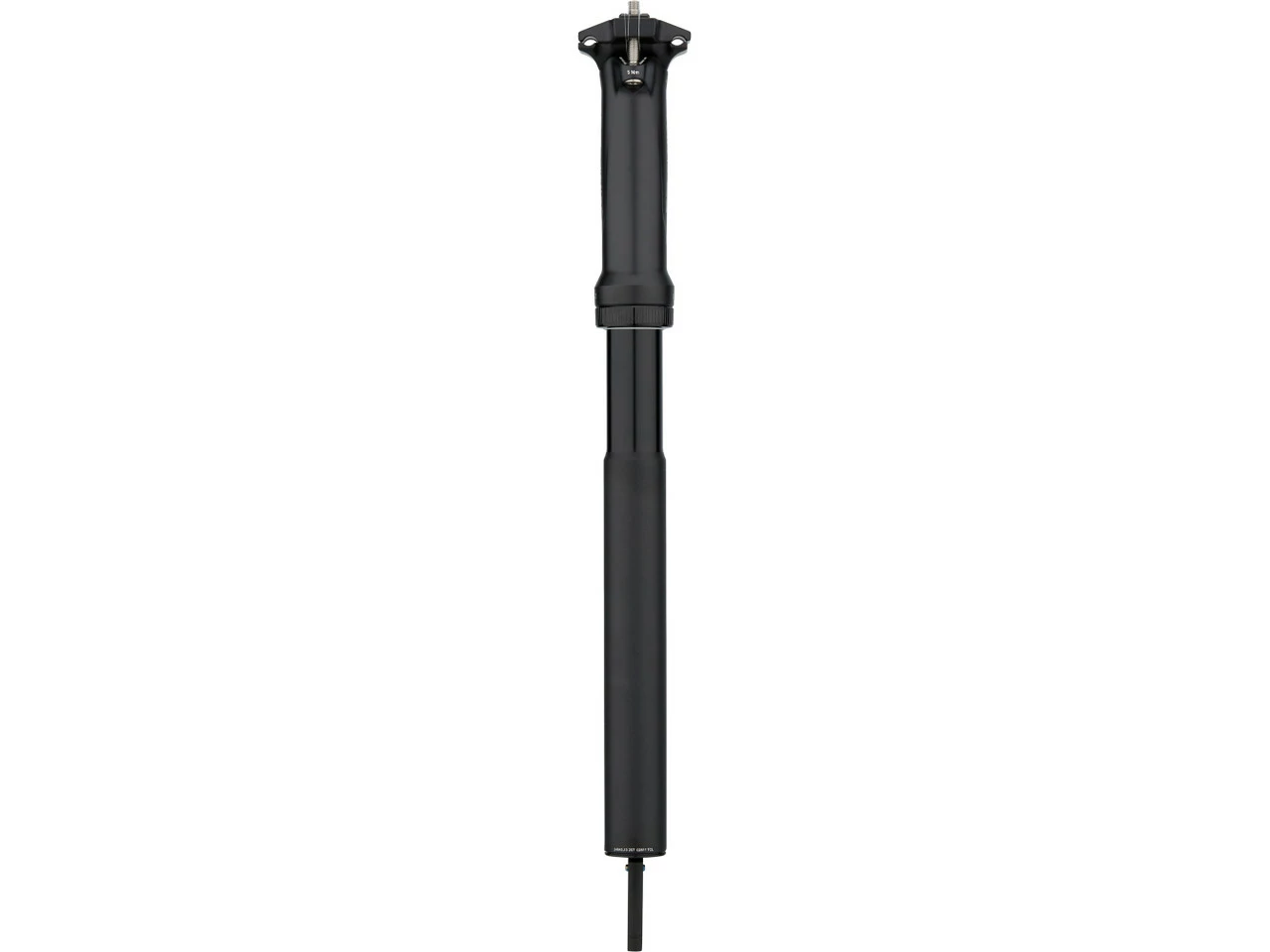

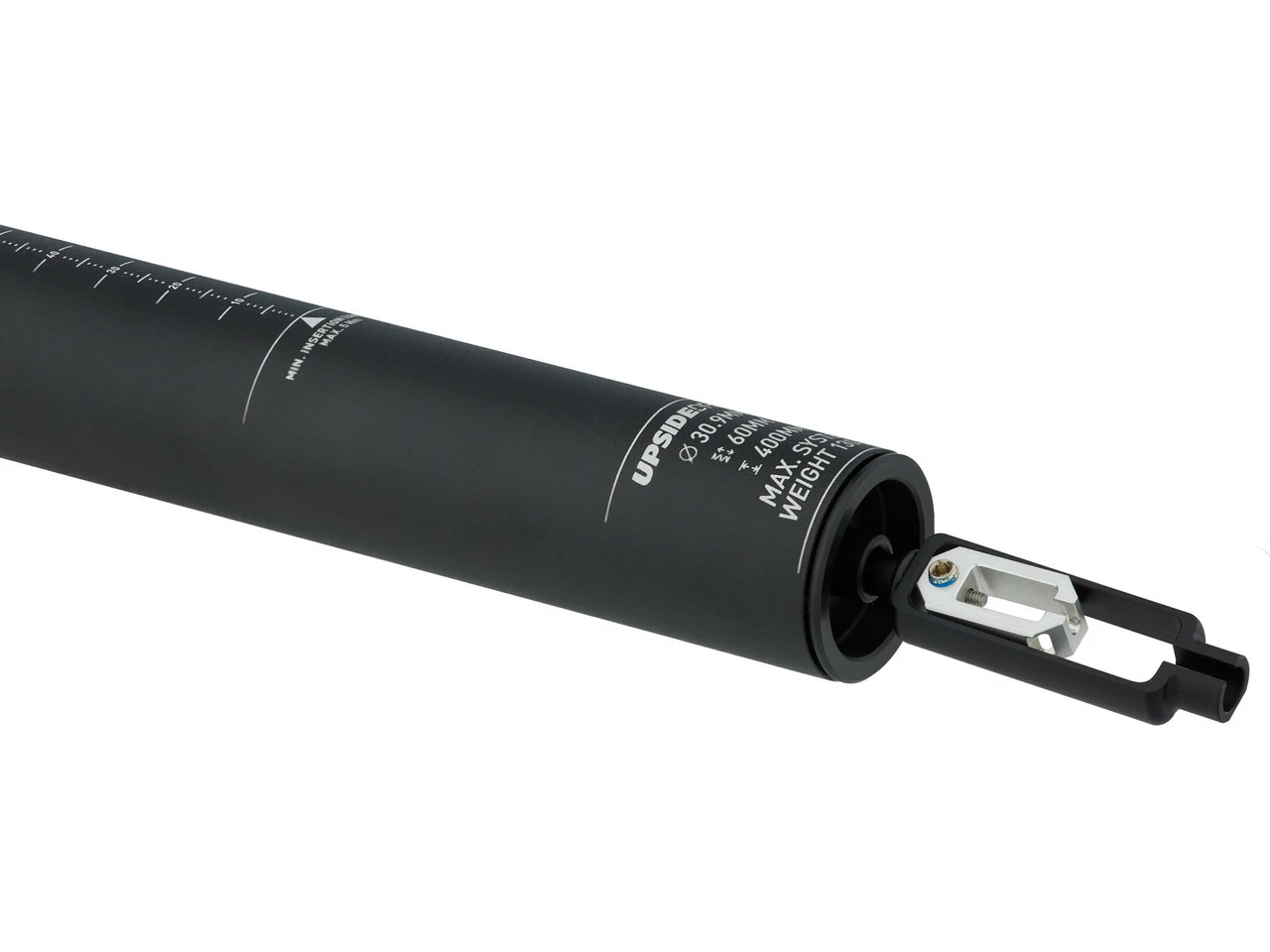

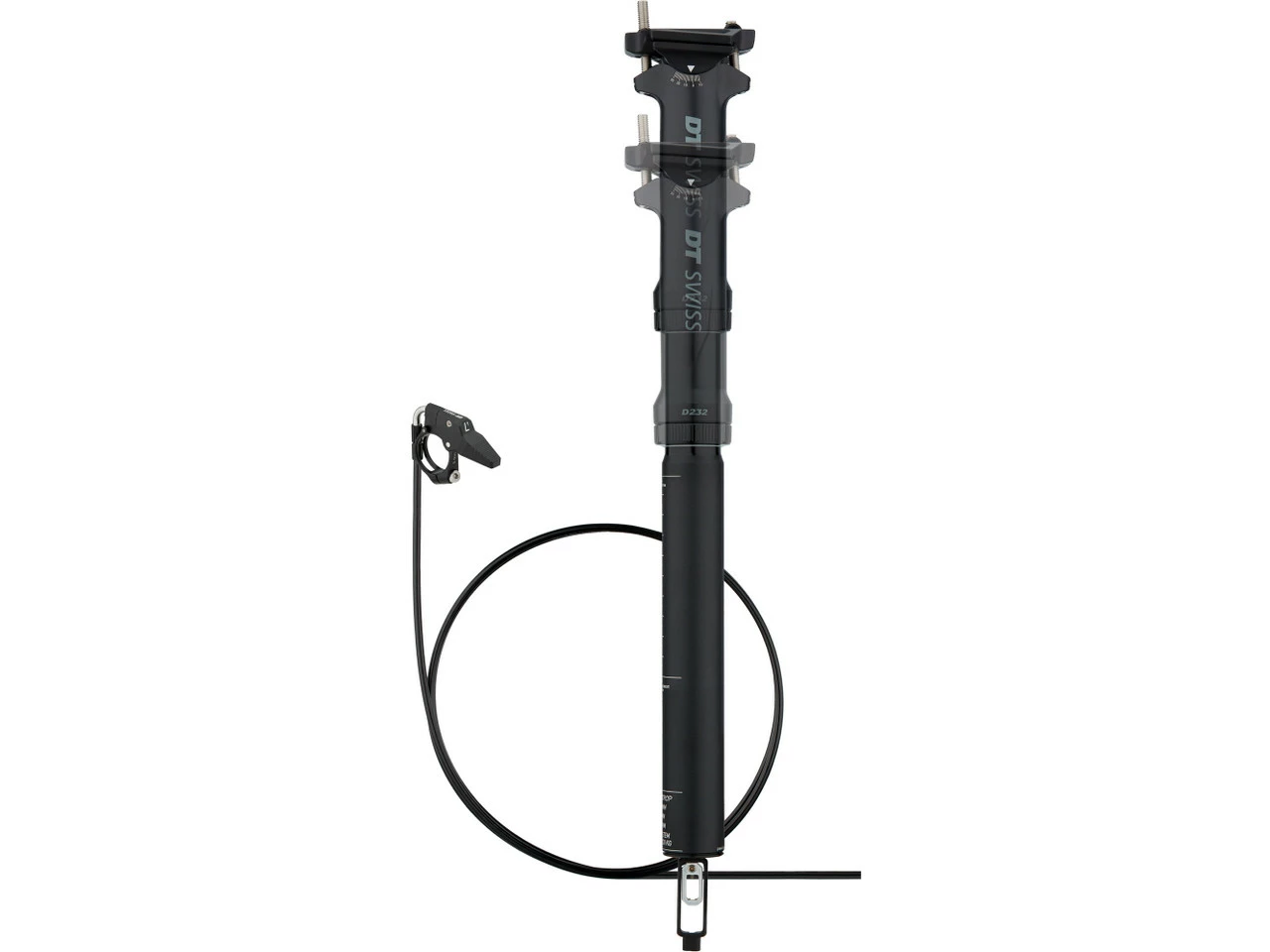

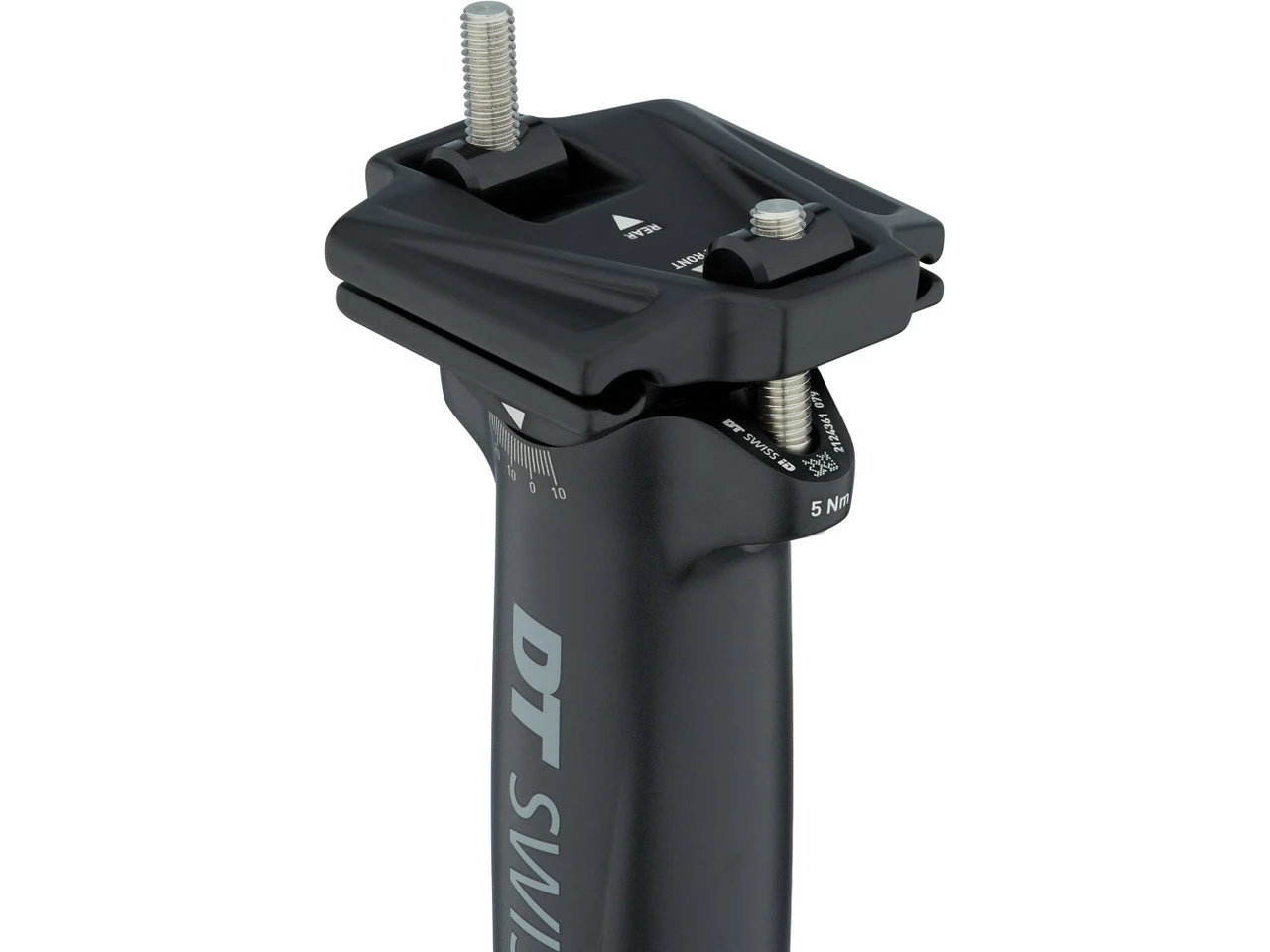

The DT Swiss 232 is a light and easy to maintain remote dropper post for cross country use. Thanks to Upside Drop technology of the telescopic dropper post, the oil piston on top ensures consistent lubrication of the dip tube. The reliability of the dropper post is enhanced by its purely mechanical construction, and maintenance is straightforward and can be done quickly without using tools. The L1 remote lever allows the saddle height to be adjusted from the handlebars. The 60 mm stroke allows you to choose between two settings: Up or Down. The Up position lets you move your MTB forward quickly and efficiently on ascents, while the Down position affords you total control over your bike.

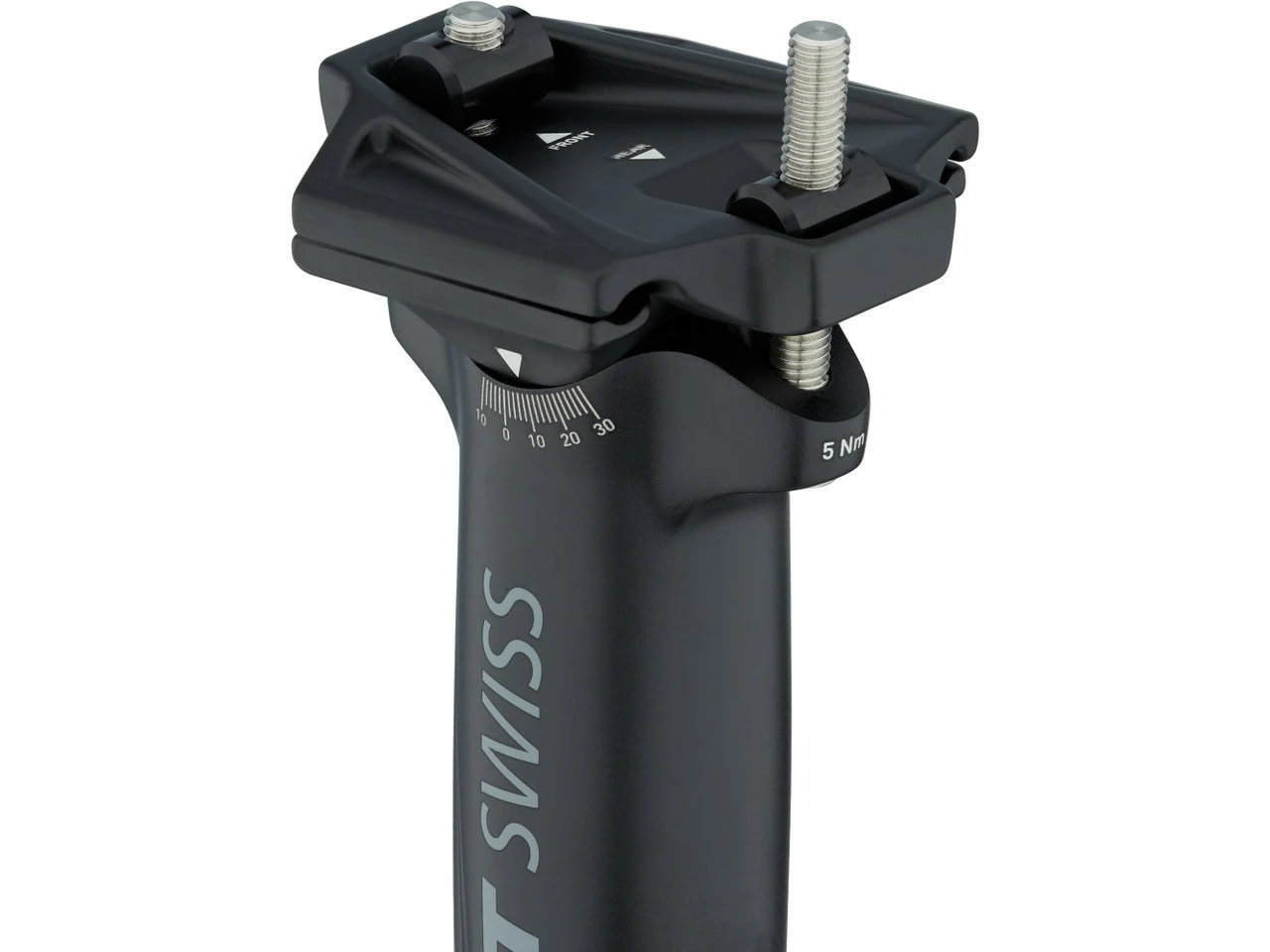

Specifications:Application:Cross CountryTravel:60 mmDiameter:27.2 mm, 30.9 mmLength:400 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteRemote Mount:clamp (split), MatchmakerCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard), 7 x 9 mm (oval)Material:aluminiumApproved For:Weight Limit:130 kg (system weight)Insertion Depth (max.):190 mmInsertion Depth (min.):90 mmCompatibility:Bicycle frame for internal cable routingReducing sleeves with a minimum length of 90 mmNote from the manufacturer:No trailers, seatpost carriers or other attachments may be attached to the dropper post.
Features:dropper post for cross-country bikestwo remote actuation settings: Up and Downmin. extension length: 210 mmmax. extension length: 310 mmHeight: 150 mmQuickconnector length: 45 mmTechnology:Intended use – Category 3
Suitable for use on rough paved and unpaved ground, with a raised riding technique and occasional drops and jumps of approx. 60 cm.
Models:27,2 mm / 400 mm / SB 0 mm / L1:
Diameter:27.2 mmLength:400 mmSetback:0 mmRemote Mount:Split clamp (L1)Manufacturer Number:D232XDKAADSA29730S
30,9 mm / 400 mm / SB 0 mm / L1:
Diameter:30.9 mmLength:400 mmSetback:0 mmRemote Mount:Split clamp (L1)Manufacturer Number:D232XDKBADSA29733S
27,2 mm / 400 mm / SB 0 mm / L1 Trigger:
Diameter:27.2 mmLength:400 mmSetback:0 mmRemote Mount:Split clamp (L1 Trigger)Manufacturer Number:D232XDKAAESA35558S
30,9 mm / 400 mm / SB 0 mm / L1 Trigger:
Diameter:30.9 mmLength:400 mmSetback:0 mmRemote Mount:Split clamp (L1 Trigger)Manufacturer Number:D232XDKBAESA35554S

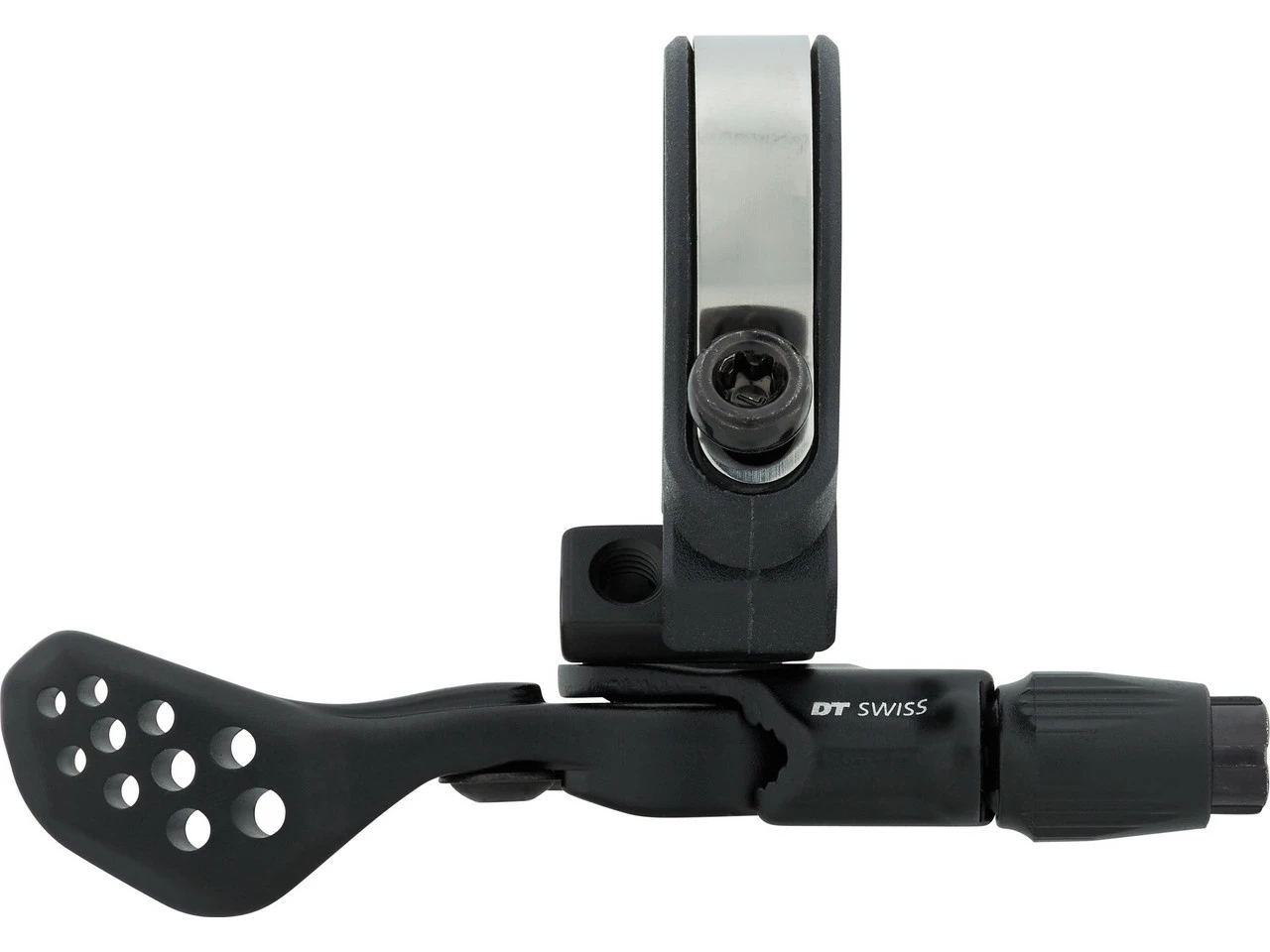

27,2 mm / 400 mm / SB 0 mm / L1 Trigger Matchmaker:
Diameter:27.2 mmLength:400 mmSetback:0 mmRemote Mount:Matchmaker (L1 Trigger)Manufacturer Number:D232XDKAAESA35557S
30,9 mm / 400 mm / SB 0 mm / L1 Trigger Matchmaker:

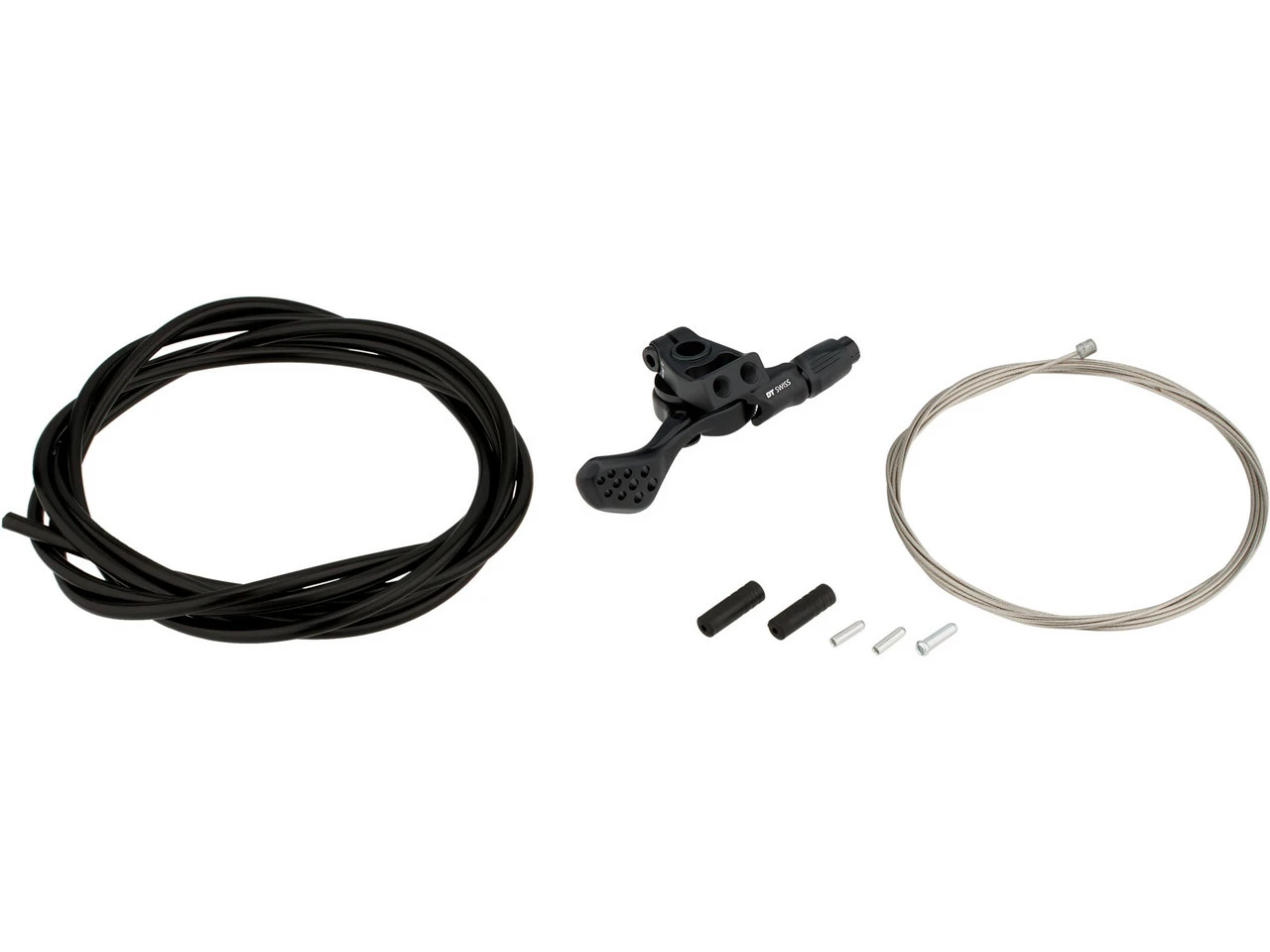

Diameter:30.9 mmLength:400 mmSetback:0 mmRemote Mount:Matchmaker (L1 Trigger)Manufacturer Number:D232XDKBAESA35553SContents:1 x DT Swiss D 232 seatpost1 x DT Swiss L1 remote lever1 x DT Swiss Matchmaker clamp (only for versions with Matchmaker)1 x actuation cable1 x cable housing1 x shifter cable end cap1 x cable housing end caps1 x ferrules
