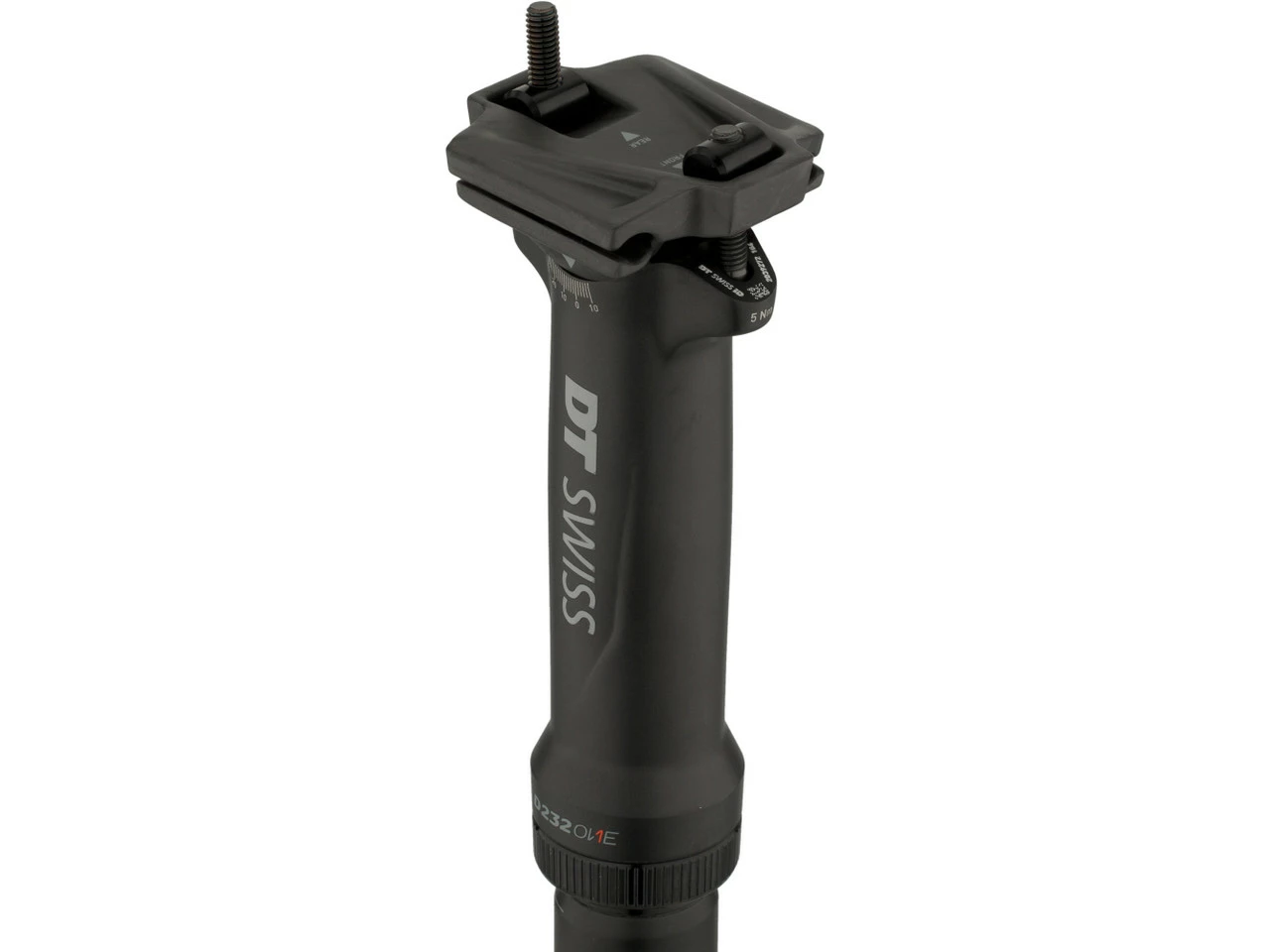

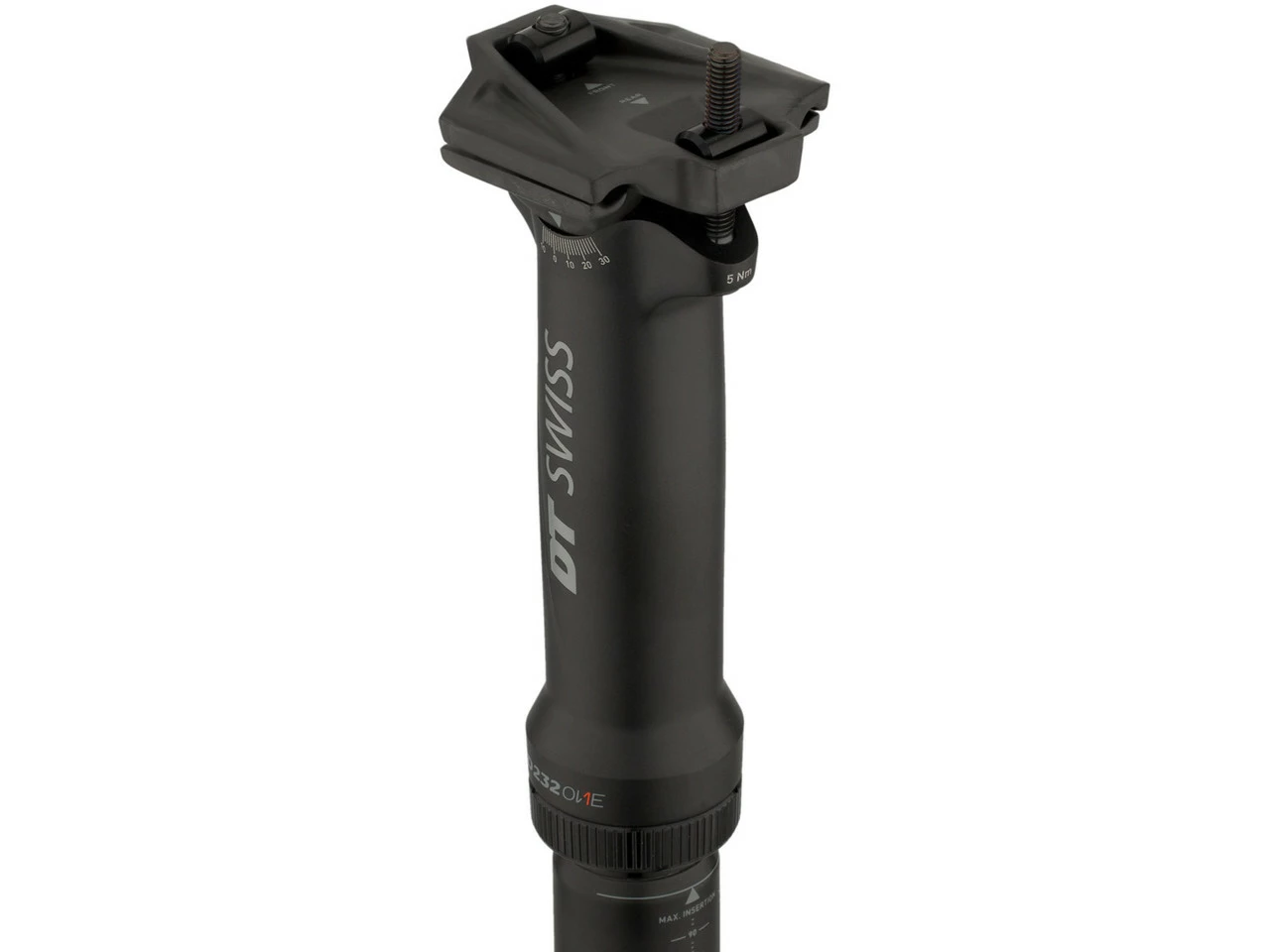

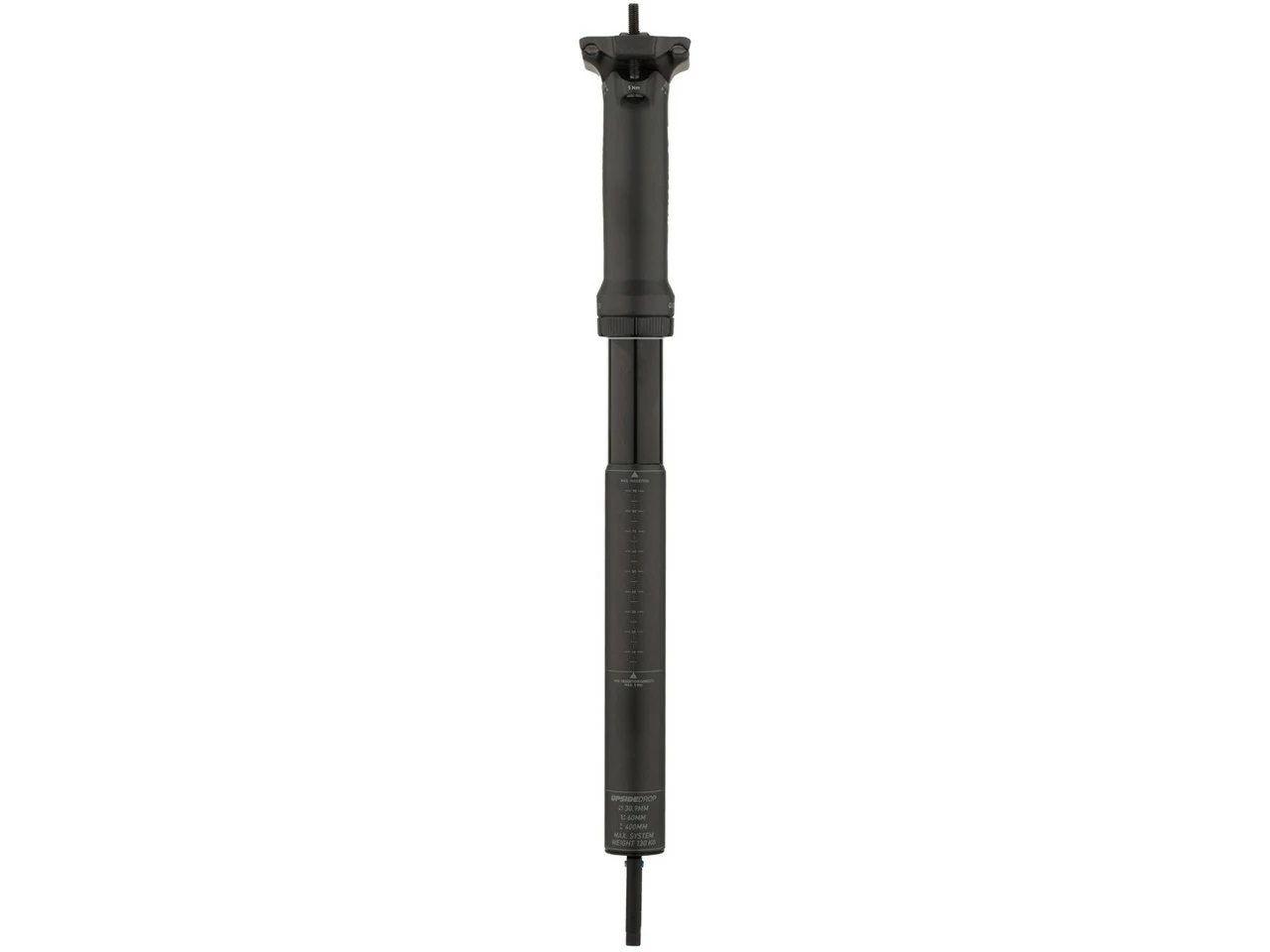

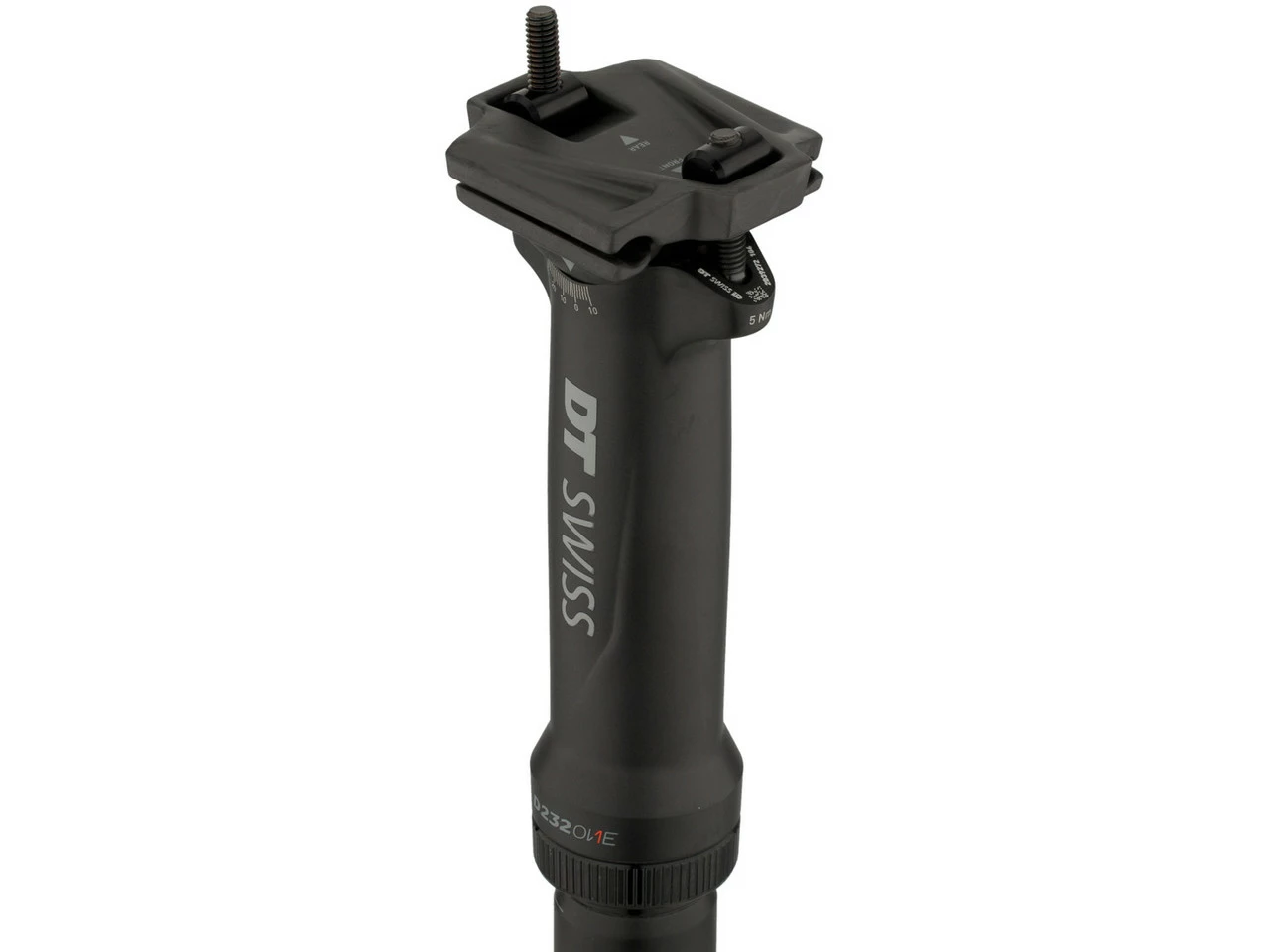

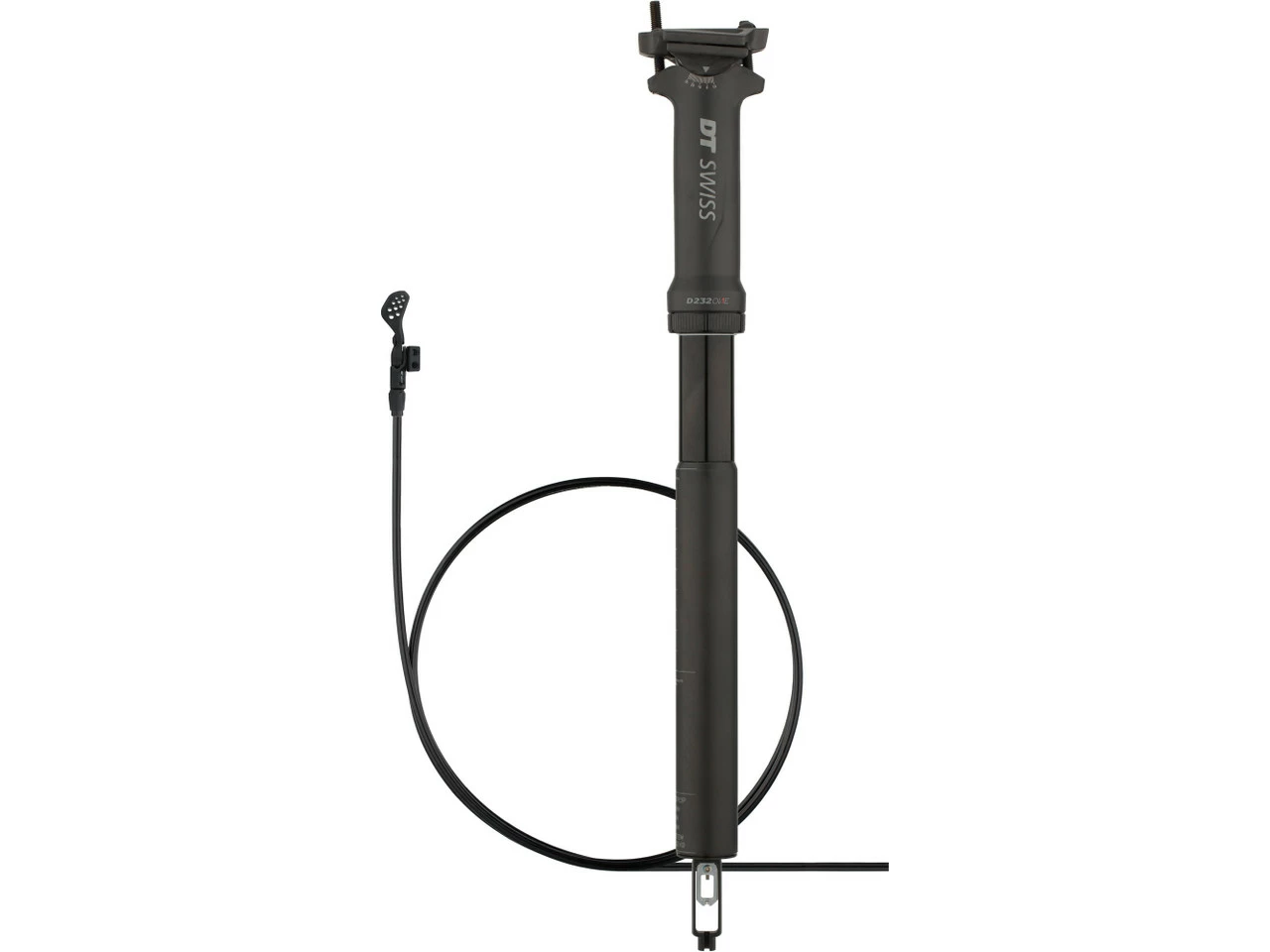

The D 232 ONE Carbon 60 mm Remote Dropper Post by DT Swiss – a super light dropper post, for downhill and uphill
The DT Swiss232 ONE is a light and easy to maintain remote dropper post for cross-country use. Thanks to Upside Drop technology of the telescopic dropper post, the oil piston on top ensures consistent lubrication of the dip tube. The reliability of the dropper post is enhanced by its purely mechanical construction, and maintenance is straightforward and can be done quickly without using tools. The L1 remote lever allows the saddle height to be adjusted from the handlebars. The 60 mm stroke allows you to choose between two settings: Up or Down. The Up position lets you move forward quickly and efficiently on MTB ascents, while the Down position affords you total control over your bike.
Specifications:Application:Cross CountryTravel:60 mmDiameter:27.2 mm, 30.9 mmLength:400 mmSetback:0 mmTechnical Information:Actuation:mechanical handlebar remoteRemote Mount:mechanical handlebar remoteCable Routing:internalClamp:2-bolt clampCompatible Saddle Rails:7 x 7 mm (standard), 7 x 9 mm (oval)Material:CarbonApproved For:Weight Limit:130 kg (system weight)Insertion Depth (max.):190 mmInsertion Depth (min.):90 mmCompatibility:Bicycle frame for internal cable routingReducing sleeves with a minimum length of 90 mmNote from the manufacturer:No trailers, seatpost carriers or other attachments may be attached to the dropper post.
Features:two remote actuation settings: Up and Downmin. extension length: 210 mmmax. extension length: 310 mmHeight: 150 mmQuickconnector length: 45 mmCarbon seat clamp and seat tubeTechnology:Intended use – Category 3:
Suitable for use on rough paved and unpaved ground, with a raised riding technique and occasional drops and jumps of approx. 60 cm.

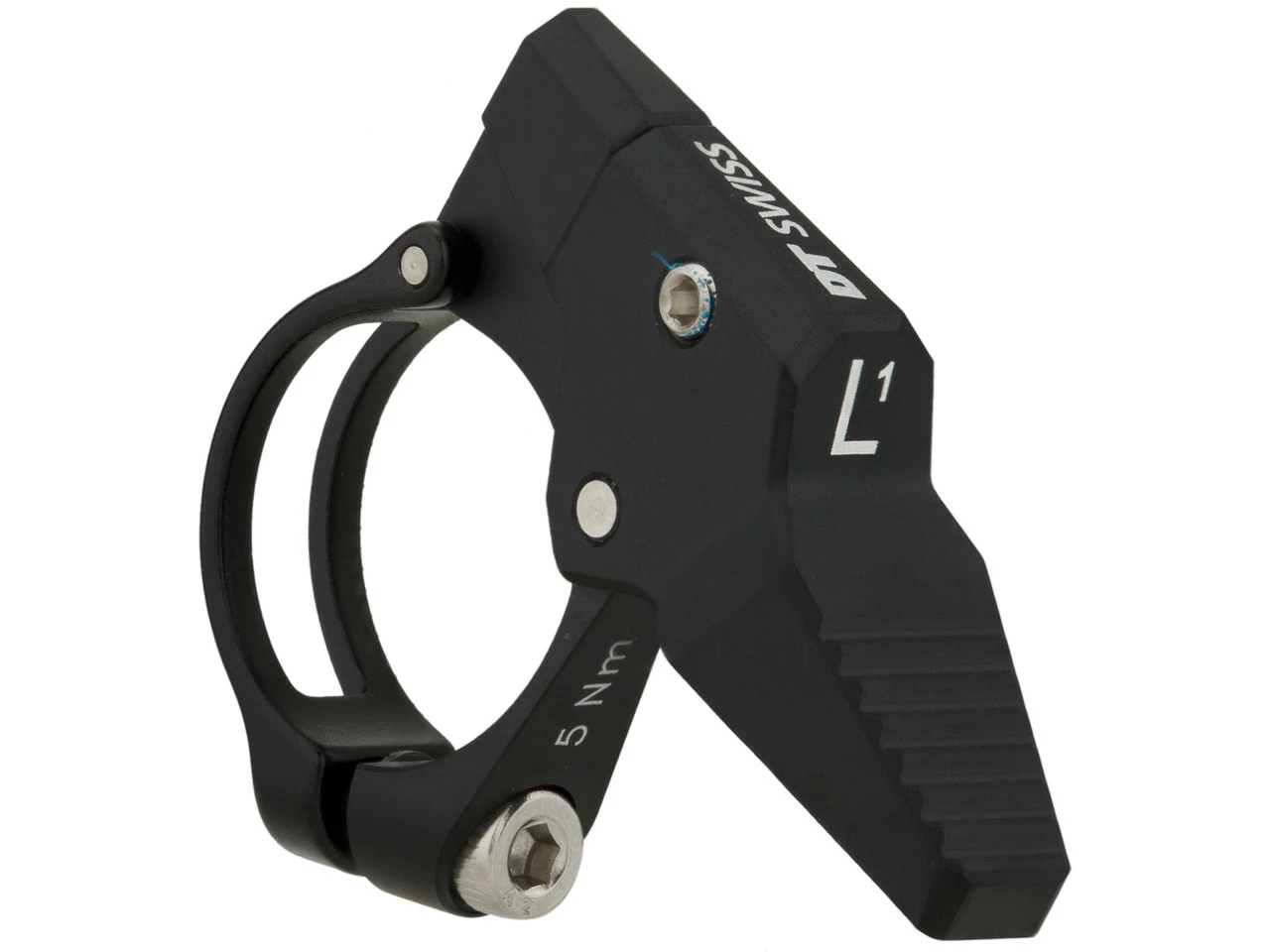

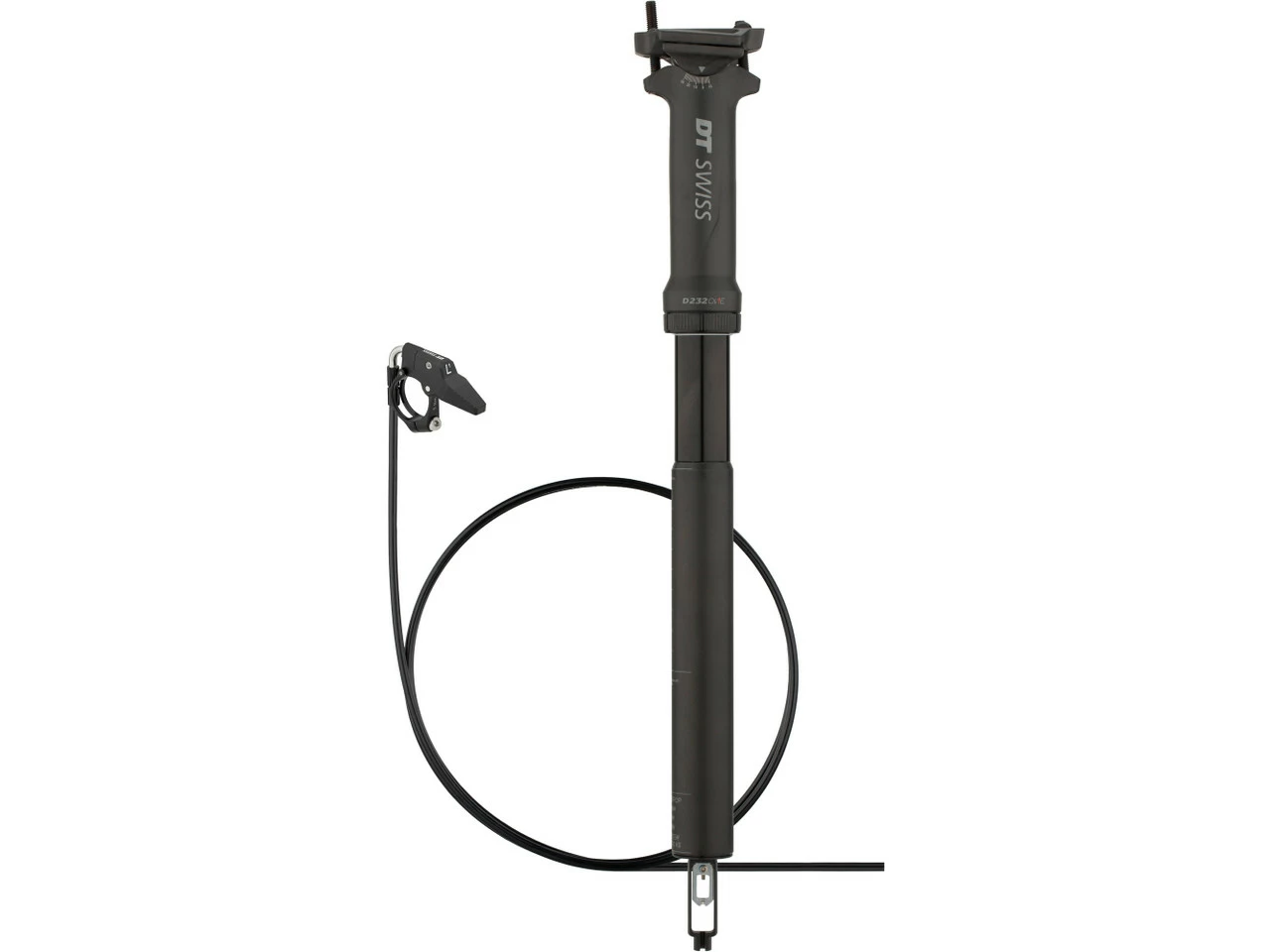

Models:27,2 mm / 400 mm / SB 0 mm / L1:
Diameter:27.2 mmLength:400 mmSetback:0 mmManufacturer Number:D232ODKAADCA29727S
30,9 mm / 400 mm / SB 0 mm / L1:
Diameter:30.9 mmLength:400 mmSetback:0 mmManufacturer Number:D232ODKBADCA29725S

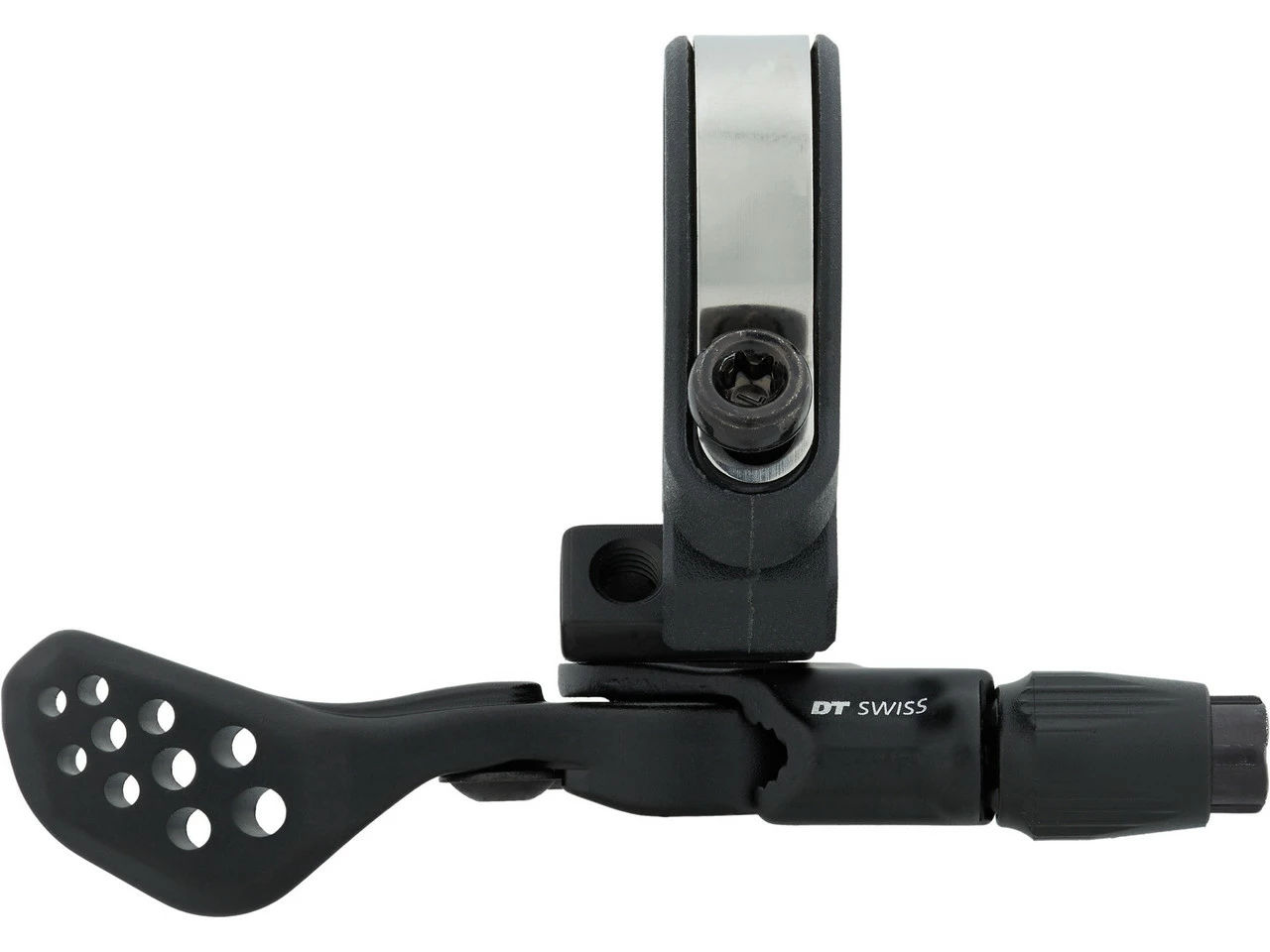

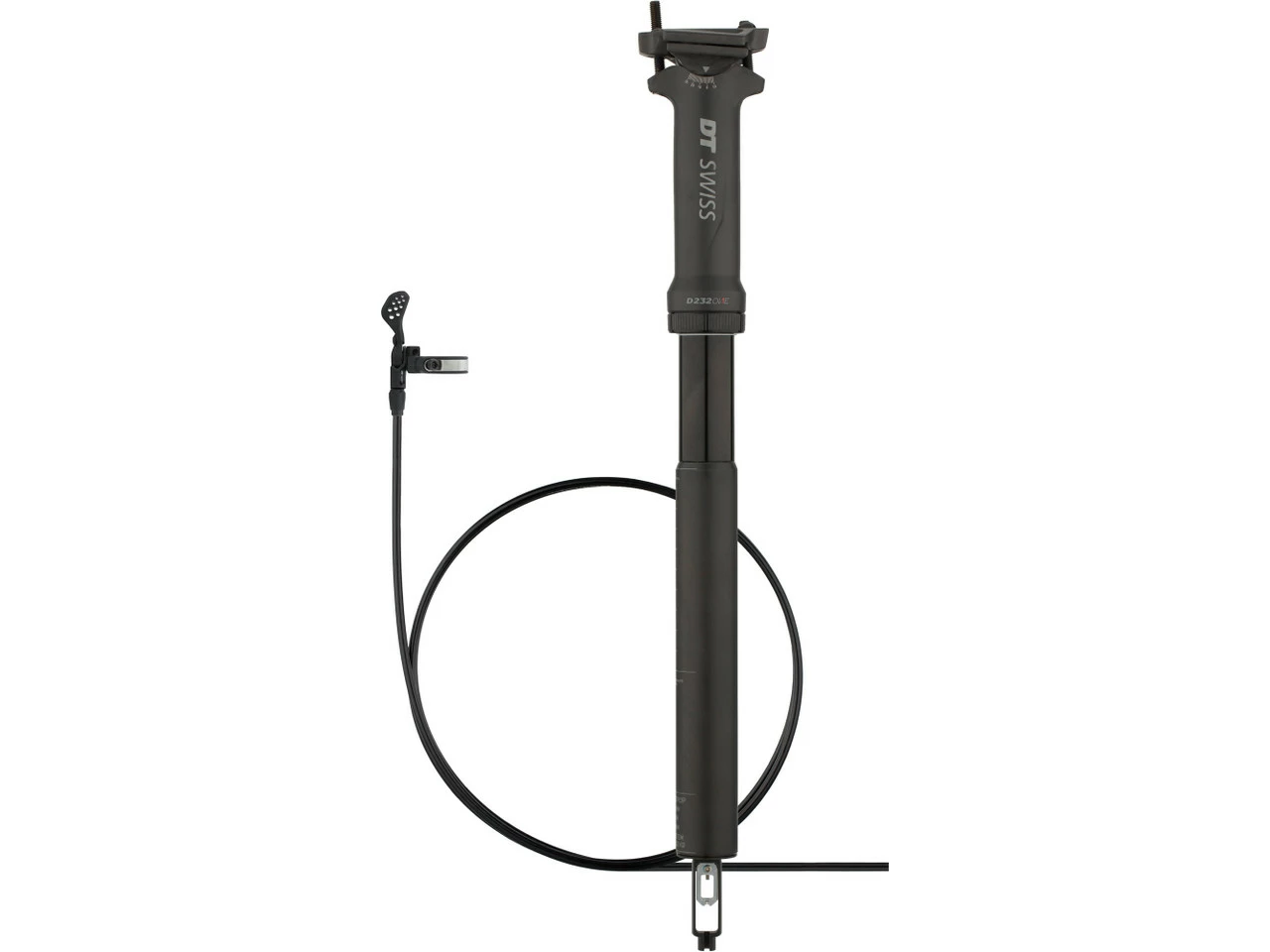

27,2 mm / 400 mm / SB 0 mm / L1 Trigger:
Diameter:27.2 mmLength:400 mmSetback:0 mmManufacturer Number:D232ODKAAECA35550S
30,9 mm / 400 mm / SB 0 mm / L1 Trigger:
Diameter:30.9 mmLength:400 mmSetback:0 mmManufacturer Number:D232ODKBAECA35542S

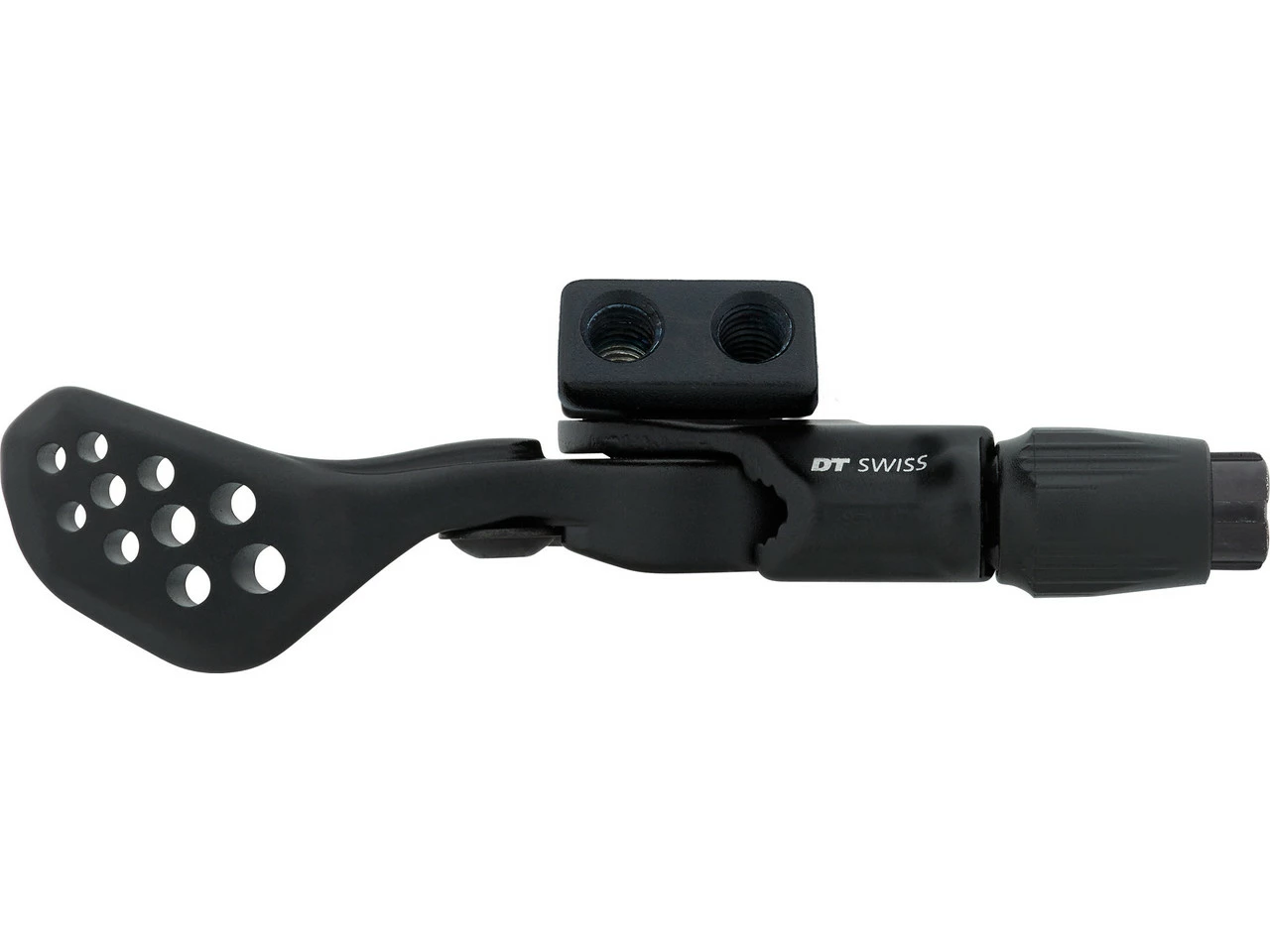

27,2 mm / 400 mm / SB 0 mm / L1 Trigger Matchmaker:
Diameter:27.2 mmLength:400 mmSetback:0 mmManufacturer Number:D232ODKAAECA35549S
30,9 mm / 400 mm / SB 0 mm / L1 Trigger Matchmaker:

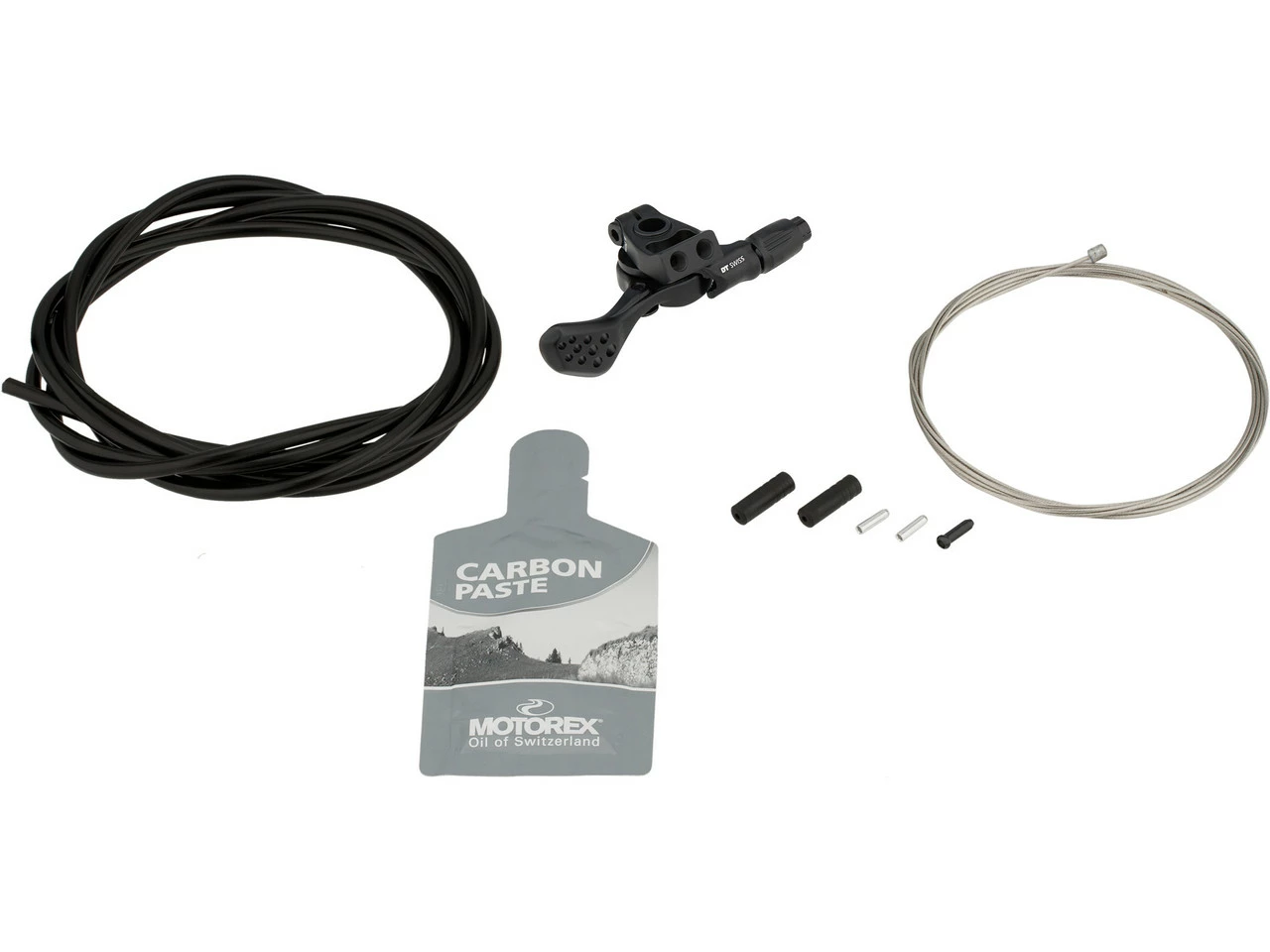

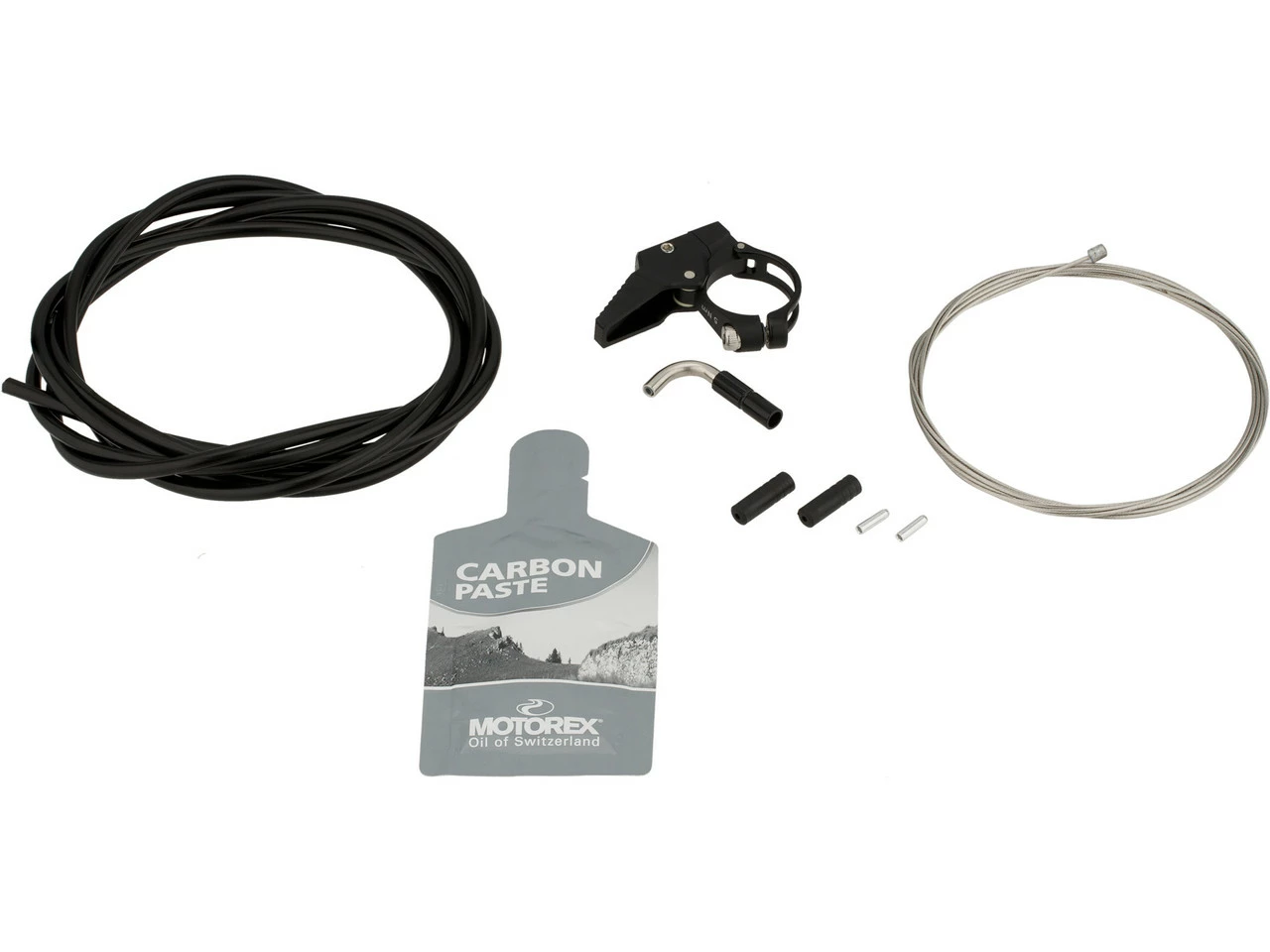

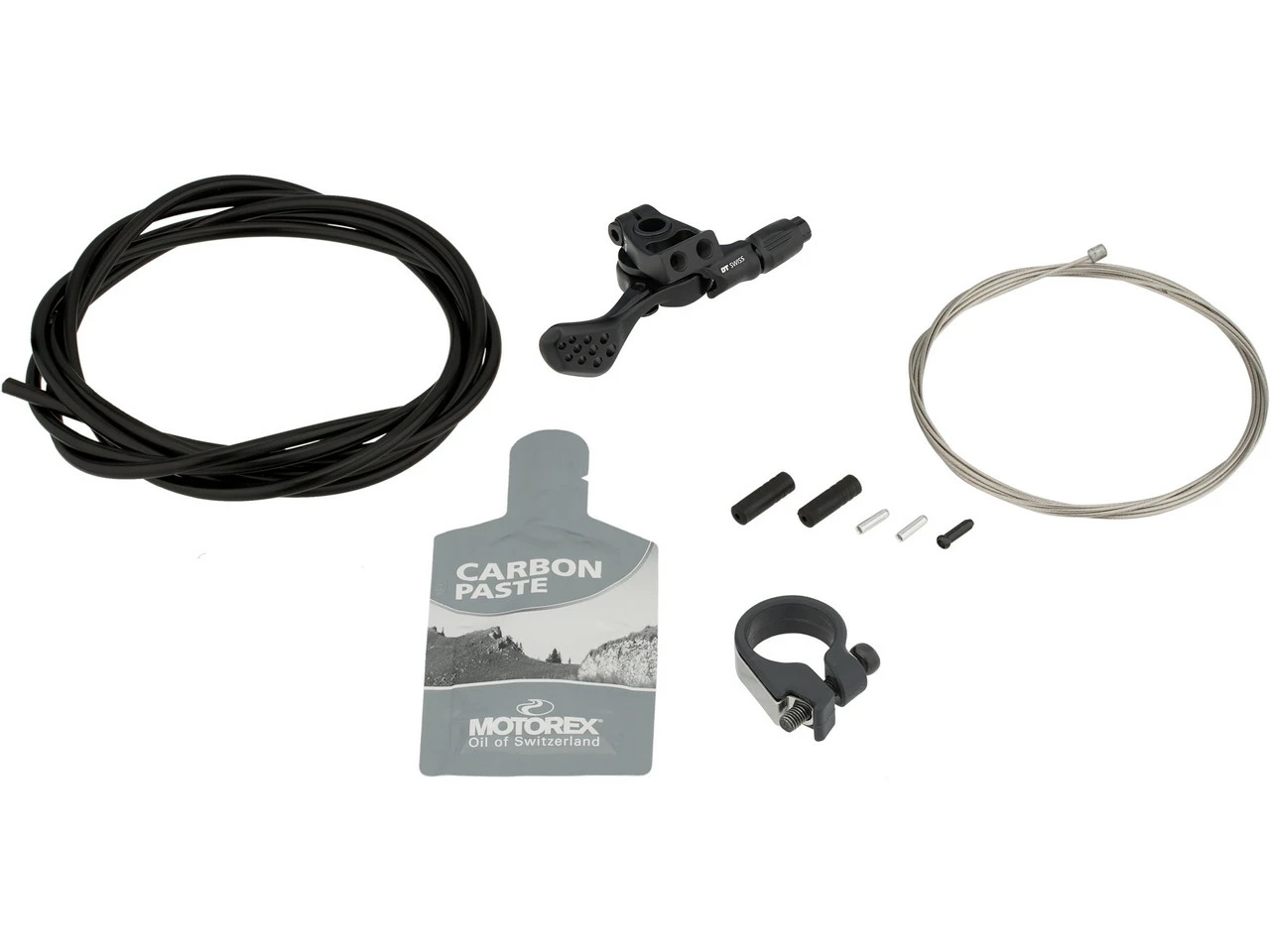

Diameter:30.9 mmLength:400 mmSetback:0 mmManufacturer Number:D232ODKBAECA35540SContents:1 x DT Swiss D 232 ONE Carbon seatpost1 x DT Swiss remote lever1 x actuation cable1 x cable housing1 x shifter cable end cap1 x cable housing end caps1 x assembly paste for carbon
